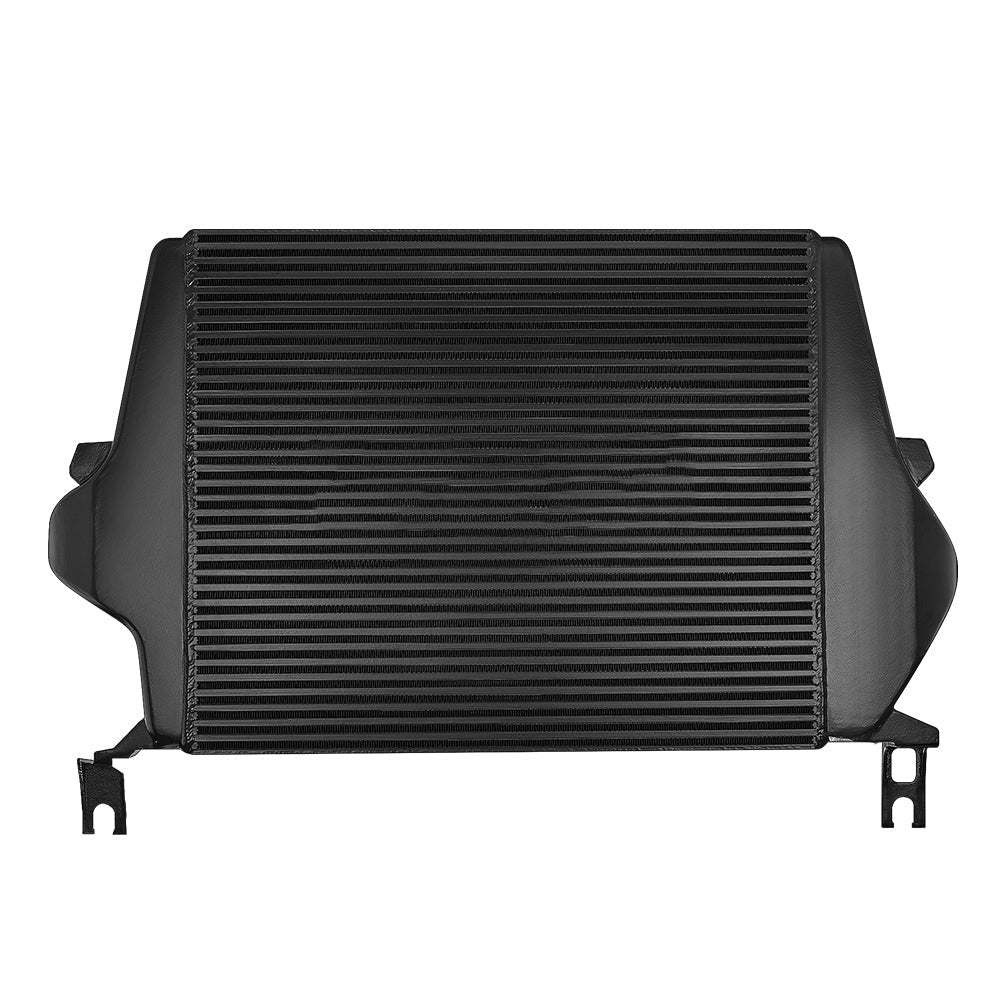

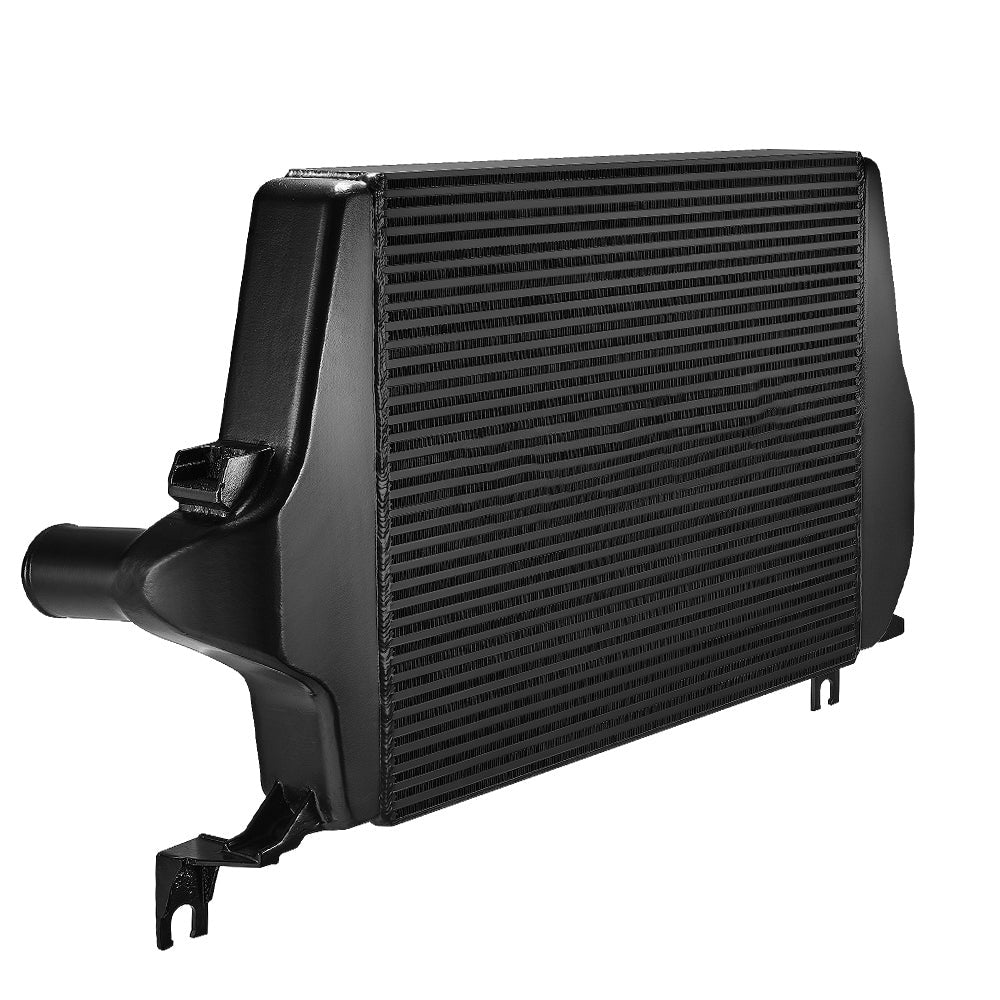

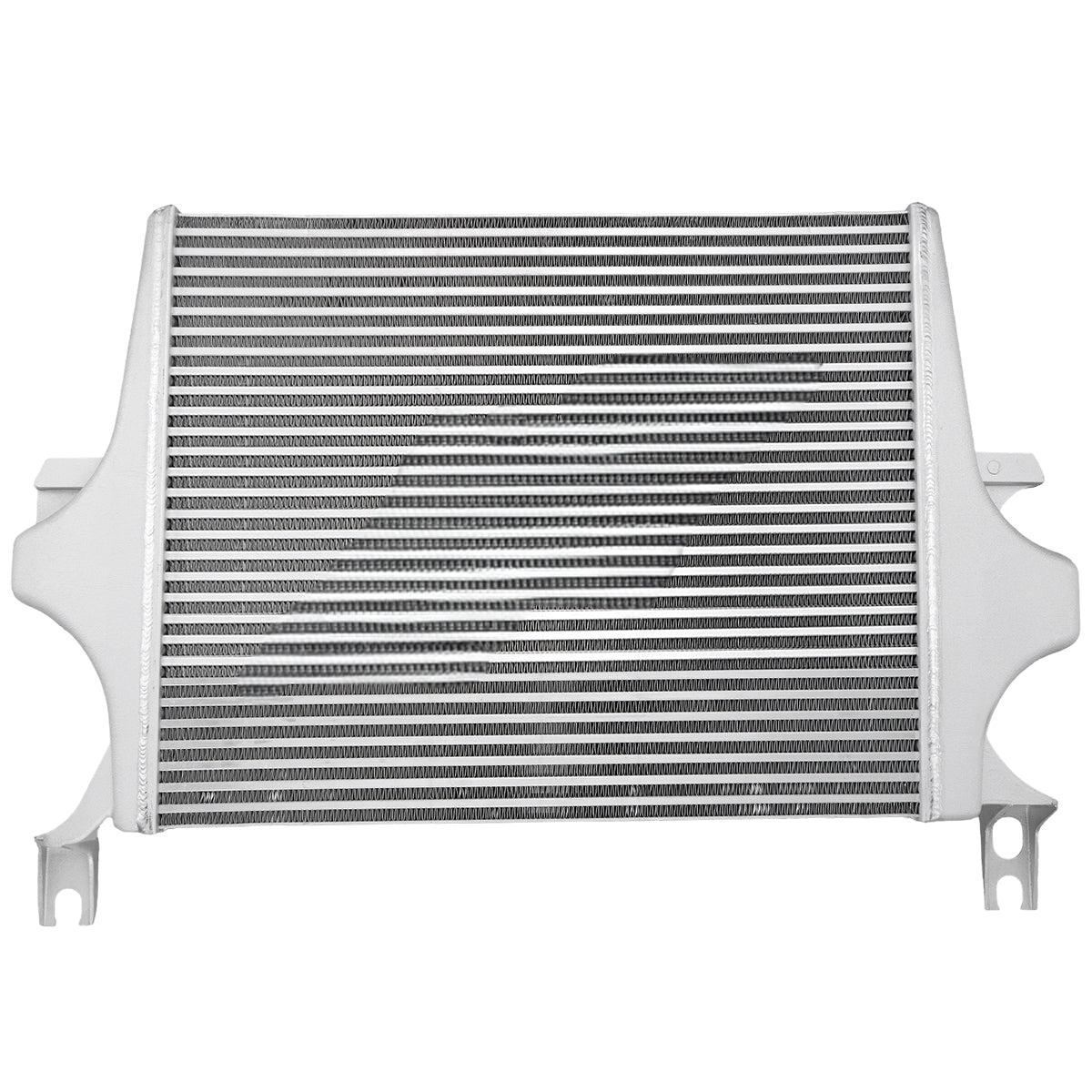

Intercooler Bar and Plate- 2003-2007 Ford 6.0L Powerstroke F250 F350 F450 F550
Intercooler Bar and Plate- 2003-2007 Ford 6.0L Powerstroke F250 F350 F450 F550
🎁PRE-Black Friday sitewide 20%off with code: DP12
🎁$100 off orders over $200 code: BF100
Couldn't load pickup availability
Description
The 6.0L Powerstroke intercooler is constructed with durable cast aluminum end tanks and a robust bar-and-plate core, designed to reduce intake temperatures, enhance airflow, and minimize pressure drop. By reducing pressure drop, this intercooler will extend the lifespan of your turbocharger and boost the efficiency of your Powerstroke. The Powerstroke intercooler boasts a core with greater volume compared to the factory cooler, resulting in numerous performance advantages including increased pressure tolerance and lower exhaust gas temperatures (EGTs). This intercooler is engineered to provide significant benefits for a stock truck while also supporting the power and boost levels of a heavily modified truck.
Fitment
- 2003–2007 Ford F-250/F-350/F-450/F-550 Super Duty
- 2003–2005 Ford Excursion 6.0L Powerstroke
Key Features
-
Bar-and-Plate Core Construction
Delivers superior cooling capacity and strength compared to OEM-style tube-and-fin intercoolers. -
Cast Aluminum End Tanks
Designed for maximum durability and optimized internal airflow. -
Hot-Side Air Diverter
Ensures even airflow distribution and reduces turbulence. -
Reduced Pressure Drop
Boosts turbo efficiency, reduces turbo strain, and enhances throttle response. -
Direct-Fit Installation
No cutting or modifications required. -
Lifetime Warranty
Confidence in long-term durability and performance.
34% Larger Core for Maximum Cooling Efficiency and Performance Gains
The Intercooler features a 3.35-inch bar-and-plate core, offering a significant upgrade over the factory's 2.48-inch core, resulting in a 34% increase in size. When comparing the bar-and-plate core to the traditional tube-fin design, there's a notable 32.5% increase in core volume. This enhanced design improves airflow and cooling efficiency, making it an ideal choice for boosting the performance and durability of your vehicle.
Specifications
| Core Type | Bar-and-Plate |
| Core Thickness | 3.35 in |
| Core Length | 25.75 in |
| Core Height | 21.54 in |
| Overall Length | 38.5 in |
| Overall Height | 25.2 in |
| Overall Width | 7.5 in |
| Inlet Size | 3.25 in |
| Outlet Size | 3.00 in |
| Material | Cast Aluminum (End Tanks) |
| Warranty | Lifetime Warranty |
FAQs
Q: Will this intercooler fit my 2005 Ford Excursion 6.0L Powerstroke?
A: Yes, it is a direct-fit replacement for 2003–2005 Ford Excursions with the 6.0L Powerstroke engine.
Q: What makes the bar-and-plate design better than the factory unit?
A: Bar-and-plate intercoolers are more durable and offer better cooling efficiency under high boost and heat conditions.
Q: Is tuning required after installing this intercooler?
A: No tuning is required for installation, though performance tuning can help you fully realize the gains.
Q: Will this intercooler work with a stock turbo system?
A: Yes, it is designed to work with both stock and upgraded turbo systems.
Q: Does this intercooler require any modifications to the truck?
A: No. This intercooler is designed as a direct bolt-on replacement using factory mounting points.
Q: How does the hot-side air diverter improve performance?
A: It ensures even distribution of airflow across the core, reducing hot spots and improving cooling efficiency.
Q: What is the benefit of the increased core volume?
A: A larger core improves charge air cooling, which enhances engine efficiency, reduces EGTs, and increases power potential.
Q: Does this intercooler come with new boots or clamps?
A: No, this product includes the intercooler only. You may need to reuse or upgrade your clamps and couplers.
Q: Is this intercooler covered by a warranty?
A: Yes, it is backed by Lifetime Warranty.
