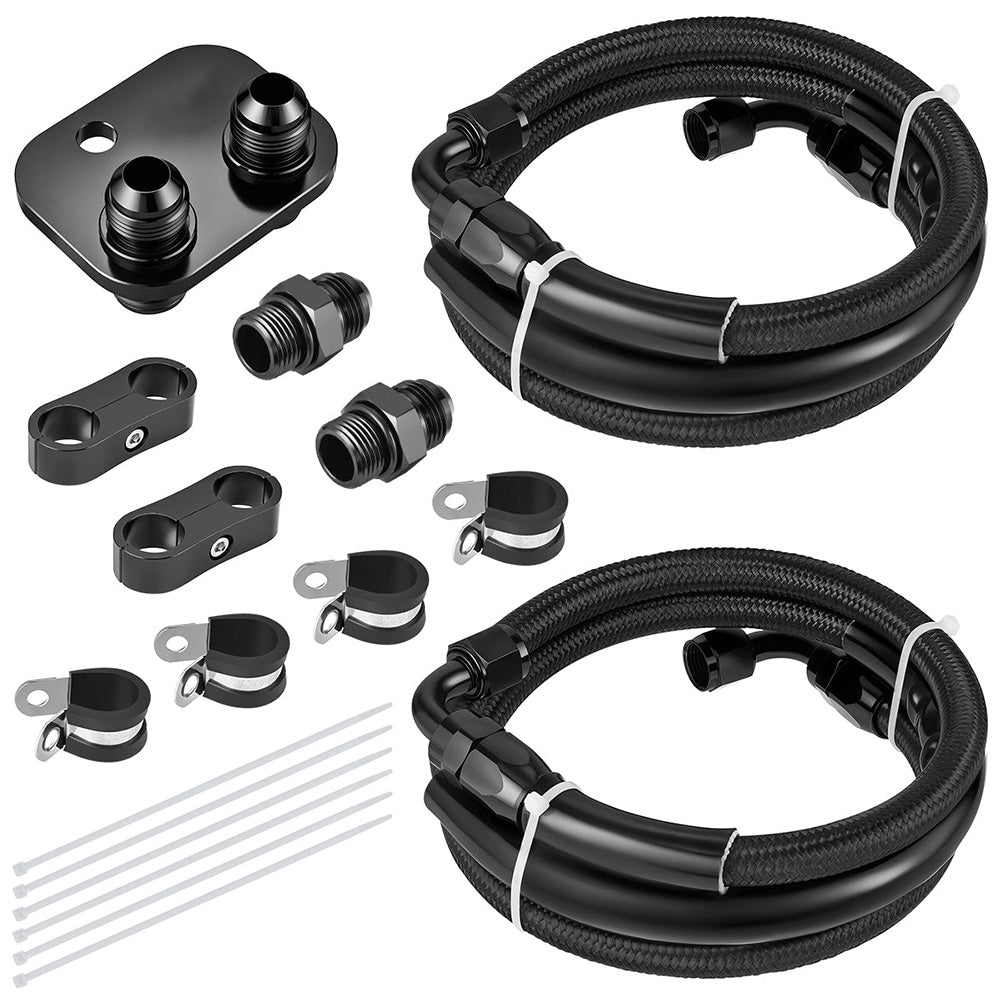

Transmission Line Kit for 2011–2016 Ford F250 F350 6.7L Powerstroke 6R140 Transmission
Transmission Line Kit for 2011–2016 Ford F250 F350 6.7L Powerstroke 6R140 Transmission
🎁PRE-Black Friday sitewide 20%off with code: DP12
🎁$100 off orders over $200 code: BF100
Couldn't load pickup availability
Description
Upgrade and replace the factory transmission cooling lines on your Ford 6.7L Powerstroke with this high-performance Transmission Line Kit. Designed specifically for the 6R140 automatic transmission, this kit addresses the common failure points of OEM lines—such as leaking, loose quick-disconnect fittings, and restricted flow. Featuring high-pressure braided CPE hoses and billet aluminum adapters, it improves fluid circulation, enhances cooling efficiency, and ensures long-term reliability under demanding conditions.
Fitments
- 2011–2016 Ford F-250 6.7L Powerstroke, 6R140 Transmission
- 2011–2016 Ford F-350 6.7L Powerstroke, 6R140 Transmission
Key Features
-
Leak-Free Design: Upgraded fittings: OE-style connection on the lower end and threaded fittings on the upper end, replacing failure-prone quick-disconnects.
-
High-Flow Braided CPE Hoses: Larger internal diameter allows greater fluid flow, improving cooling and reducing transmission temperatures.
-

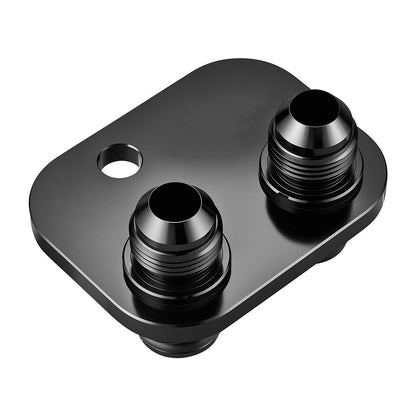

Durable Construction: CPE hoses with billet aluminum adapters ensure strength, flexibility, and resistance to heat and pressure.
-
Serviceable & Modular: Unlike OEM integrated lines, this kit allows easier maintenance and the ability to replace individual components.
-
OEM Cooler Compatibility: Designed to work seamlessly with the factory transmission cooler, no additional upgrades required.
-
Secure Mounting: Includes hose clamps to prevent chafing and wear.
Specifications
| Material | CPE hose, Billet Aluminum adapters |
| Weight | 1.24 kg |
| Package Dimensions | 24 × 21 × 9 cm |
| Application | Replaces factory 6R140 automatic transmission cooler lines |
FAQ
Q: Why should I replace the OEM transmission lines?
A: The stock quick-disconnect fittings are prone to loosening, leaking, and cracking under high heat and pressure. This kit eliminates those issues with a more secure threaded connection.
Q: Will this kit reduce transmission temperatures?
A: Yes. The larger-diameter braided hoses improve fluid flow, allowing better heat dissipation through the cooler, which helps lower transmission temperatures.
Q: Do I need to modify my truck to install this kit?
A: No major modifications are required. The kit is designed to fit the factory transmission and cooler locations.
Q: Is this kit compatible with the factory transmission cooler?
A: Yes, it is fully compatible with the OEM cooler.
Q: Can I install this kit myself?
A: Yes, but installation can be tricky. OEM lines are often difficult to remove as a single piece. It may be necessary to cut the factory line into sections for easier removal.
Q: What are the hoses made of?
A: The lines use high-pressure CPE braided hoses that are heat and abrasion resistant, ensuring durability in harsh conditions.
Q: Are the fittings reusable?
A: Yes. The billet aluminum adapters are reusable and serviceable.
Q: Will this kit work with heavy towing or off-road applications?
A: Absolutely. This kit is designed for high-demand situations like towing, hauling, and off-road driving.
Q: What happens if one of the hoses gets damaged?
A: Unlike OEM lines, you don’t need to replace the entire assembly. You can replace only the damaged section.
Q: Do I need special tools for installation?
A: Basic hand tools are sufficient. Cutting tools may be required to remove factory lines if they are stuck or routed tightly.
