7.3L V8 Powerstroke (1994-2003)

The 1994-2003 7.3L Powerstroke boasts an engine life of over 250,000 miles, earning its reputation as a legendary engine for exceptional reliability and durability.

First Generation (1994-1998)

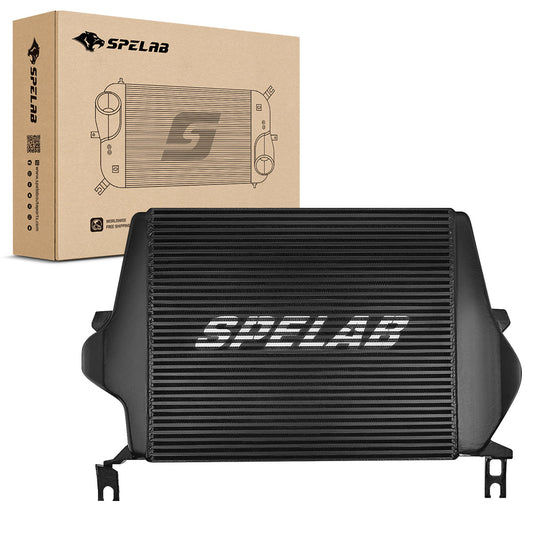

This generation made its debut in 1994 and set new benchmarks for the diesel truck industry. It was equipped with an innovative wastegate turbocharger, a direct injection system featuring HUEI fuel injectors, and an air-to-air intercooler. Initially adopted in Ford Super Duty trucks, it quickly gained recognition for outstanding performance and durability.

Second Generation (1999-2003)

Produced from 1999 to 2003, this generation featured key upgrades over its predecessor. These improvements included larger injectors, a new turbocharger, an electric lift pump, and an air-to-air intercooler, making it a top choice for diesel enthusiasts and tuners.

Specifications

This engine was manufactured by Navistar, delivering a maximum horsepower of 275 hp and a peak torque of 525 lb-ft.

Common Problems & Solutions

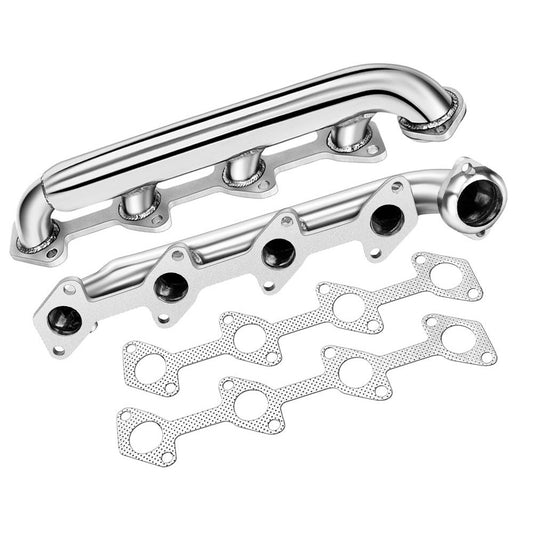

In terms of common issues, exhaust manifold leakage can be resolved by replacing OE parts or modifying the manifold. Turbine upper pipe leakage is addressed by replacing OE parts or modifying the UP PIPE. Malfunction of the fuel pressure regulating valve requires replacement of OE parts. Fuel filter blockage can be fixed by replacing OE parts or upgrading to a modified fuel filter kit. For engine overheating, solutions include replacing the coolant, modifying the thermostat, or upgrading and enlarging the water tank.

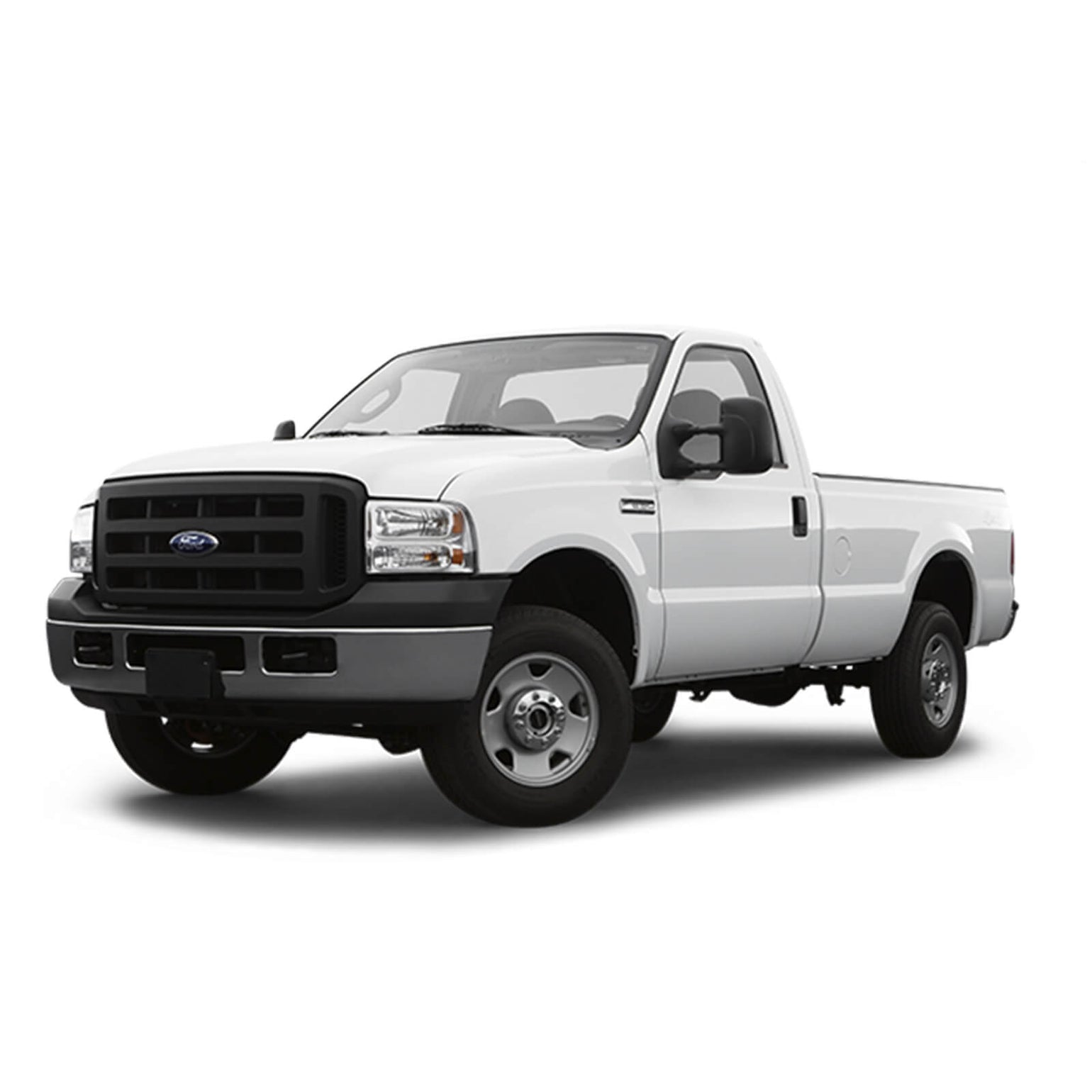

6.0L V8 Powerstroke (2003-2007)

Launched in 2003, the 6.0L Powerstroke incorporated a range of advanced technologies, such as a variable geometry turbocharger, an exhaust gas recirculation (EGR) system, and a second-generation fuel injection system. Despite these innovations, the engine is widely known for its reliability drawbacks.

Specifications

Manufactured by Navistar, this engine offers 325 hp of horsepower and 570 lb-ft of torque.

Common Problems & Solutions

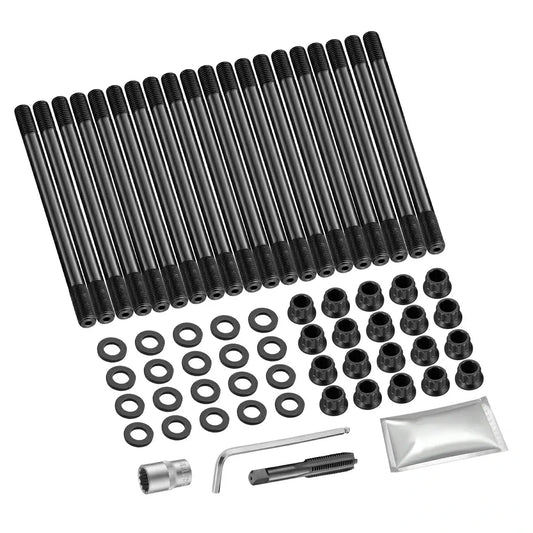

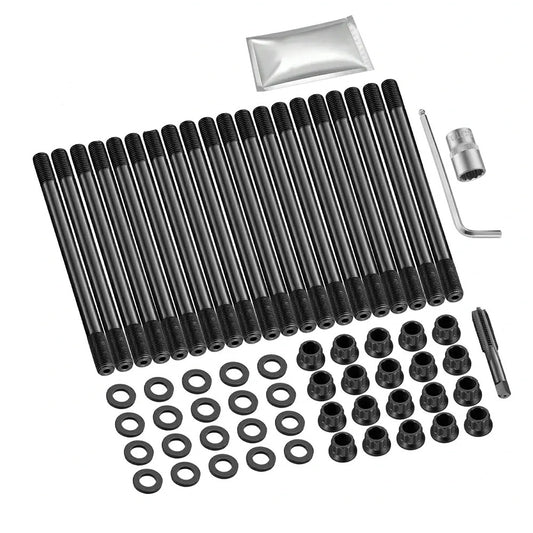

Cylinder gasket leakage calls for replacing the cylinder gasket, which is a disposable part. Cylinder head cracking requires replacing the cylinder head screws, and it is recommended to combine this with cylinder gasket replacement. Turbine blade sticking caused by carbon deposits can be resolved by disassembling and cleaning the blade or replacing the turbine entirely. A cracked auxiliary water bottle needs OE parts replacement or an upgrade to modified parts. Oil cooler blockage can be fixed by cleaning or replacing the oil cooler. For EGR system failure, options include repairing the system or installing an EGR delete kit.

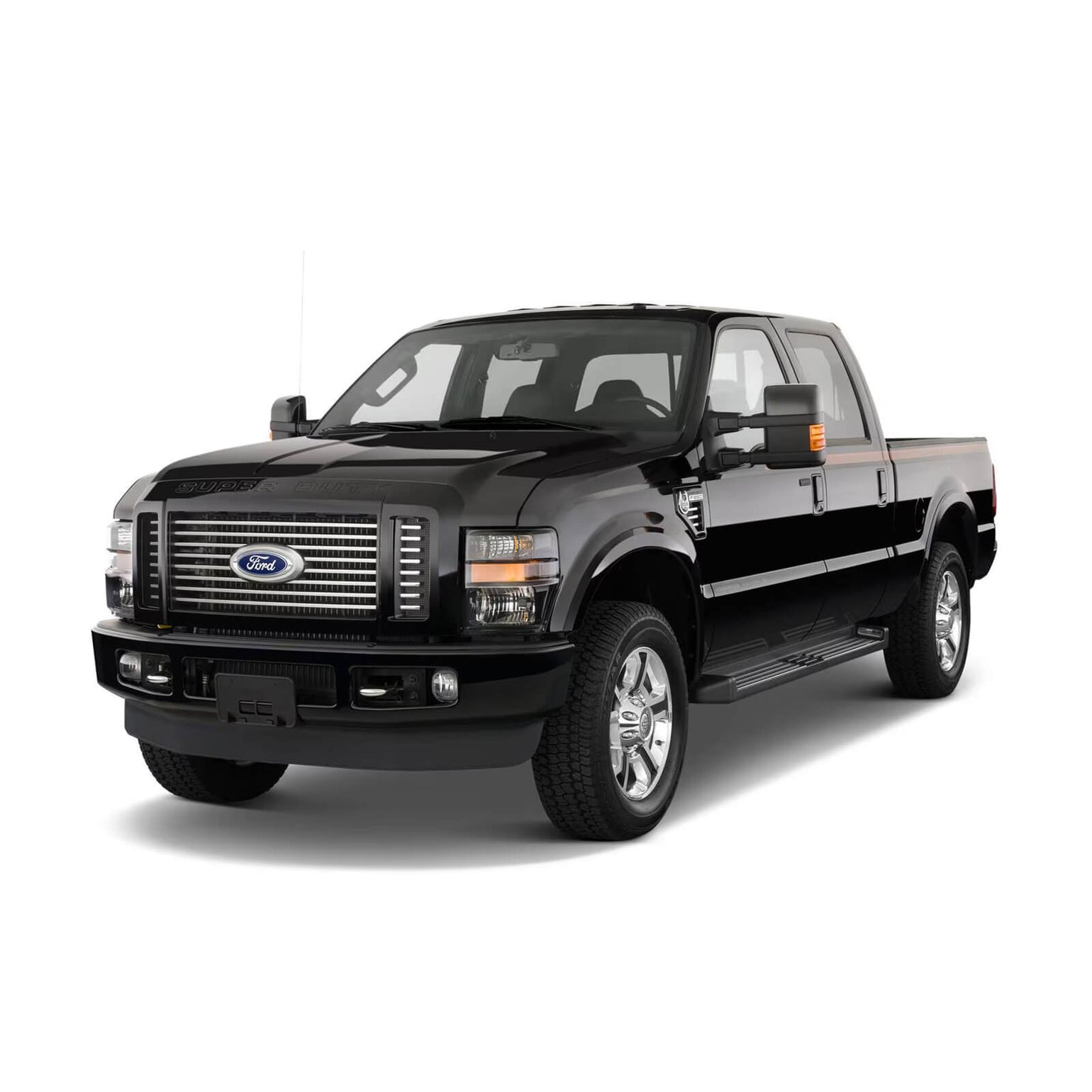

6.4L V8 Powerstroke (2008-2010)

Ford’s 2008 6.4L Powerstroke is based on the Navistar MaxxForce 7 engine, engineered to be cleaner, quieter, and more powerful than the preceding 6.0L model. To comply with stricter environmental requirements and meet EPA Tier 2 standards, it adopted key technologies like the Diesel Particulate Filter (DPF).

Specifications

This engine meets EPA Tier 2 regulations, is manufactured by Navistar, and delivers 350 hp of horsepower along with 650 lb-ft of torque.

Common Problems & Solutions

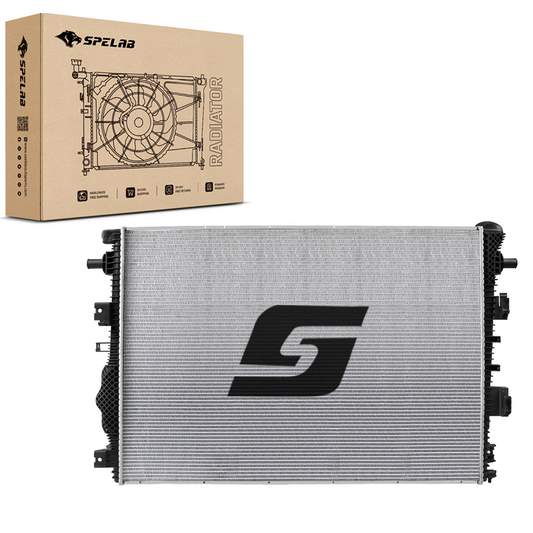

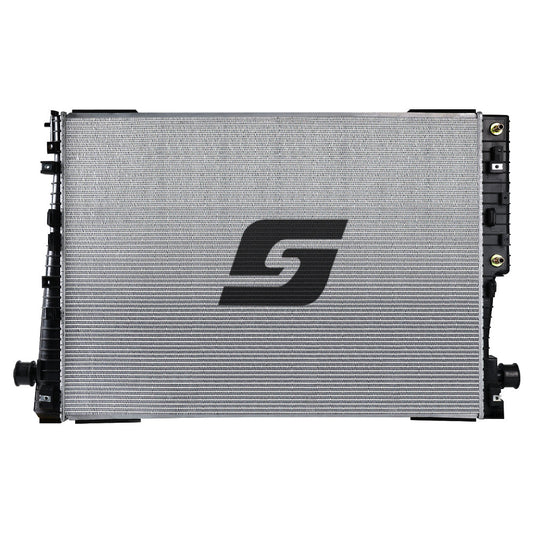

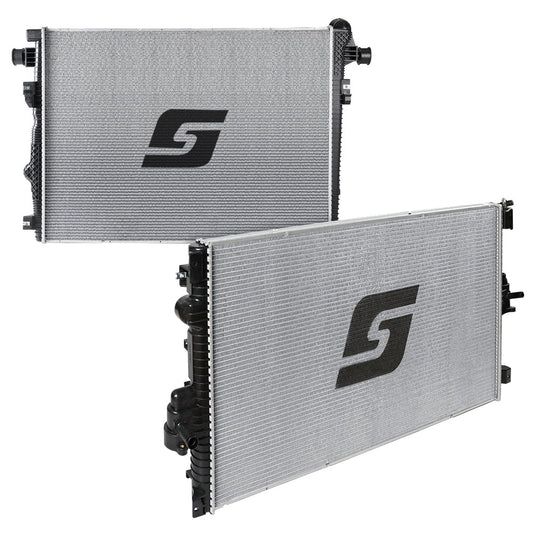

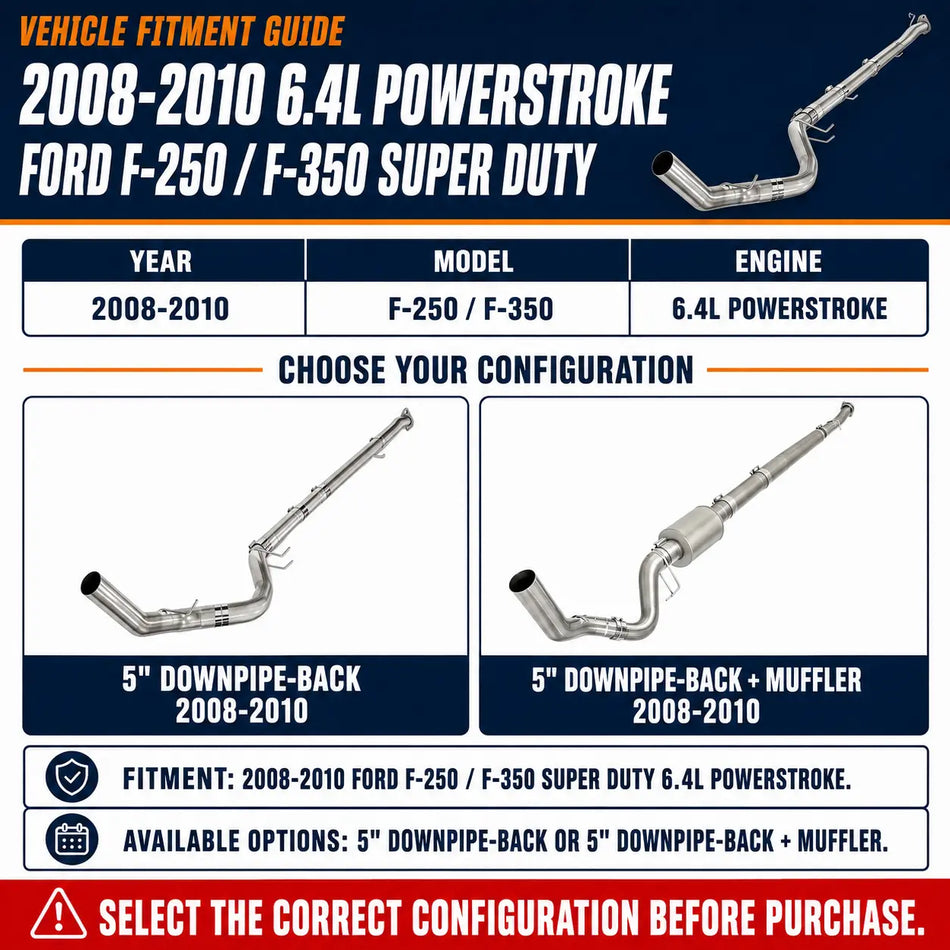

Radiator leakage is resolved by replacing the radiator. Poor fuel economy, caused by fuel injection during DPF regeneration, can be improved by installing a DPF delete kit. Increased oil dilution also requires a DPF delete kit. Exhaust upper pipe rupture is fixed by replacing OE parts or modifying the UP PIPE. Piston rupture, resulting from insufficient design strength, needs piston replacement. EGR cooler blockage can be addressed by installing a cooling water filter, replacing with a new cooler, or installing an EGR delete kit. DPF failure, which may manifest as blockage, leakage, or sensor malfunction, can be handled by repairing, replacing, or installing a DPF delete kit.

6.7L V8 Powerstroke

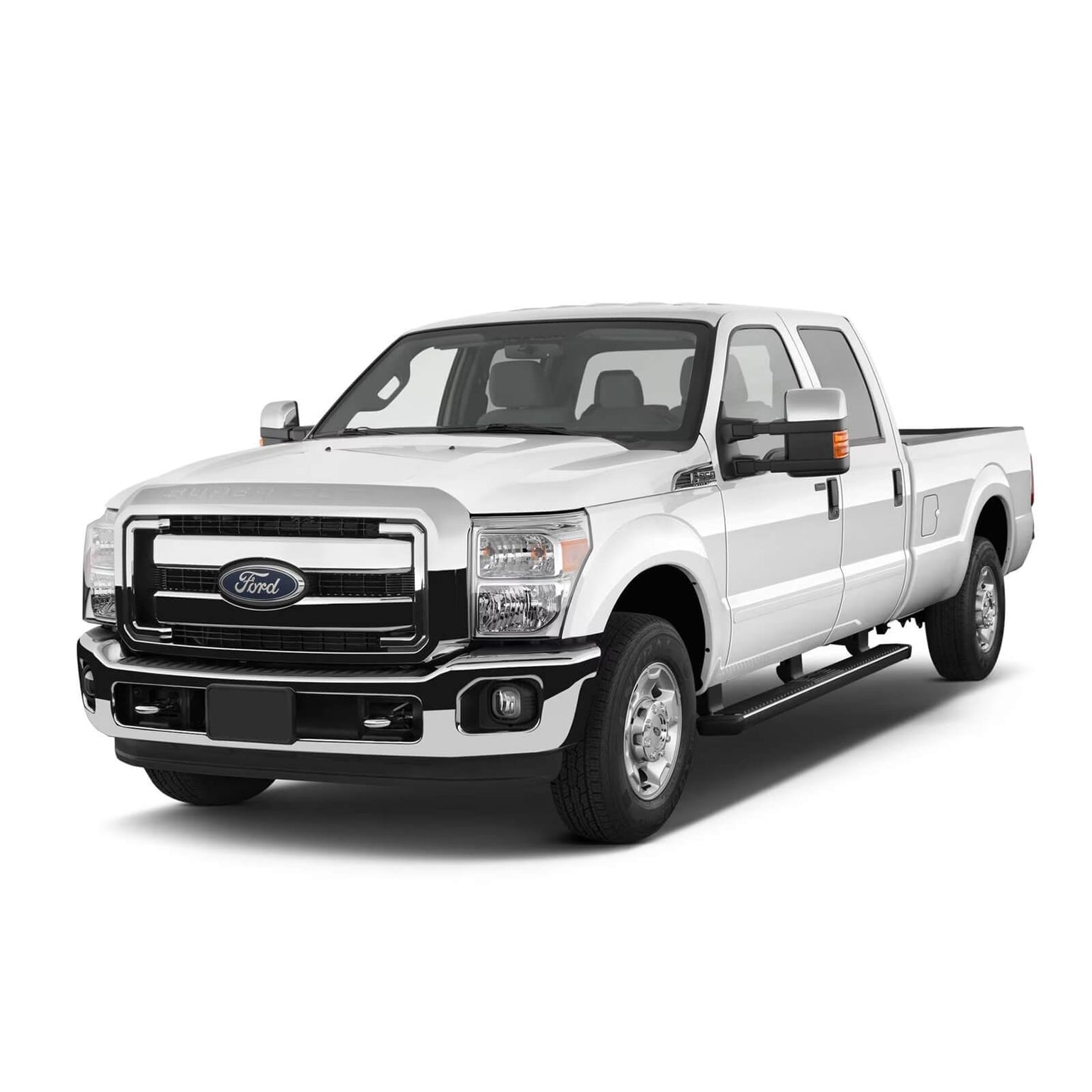

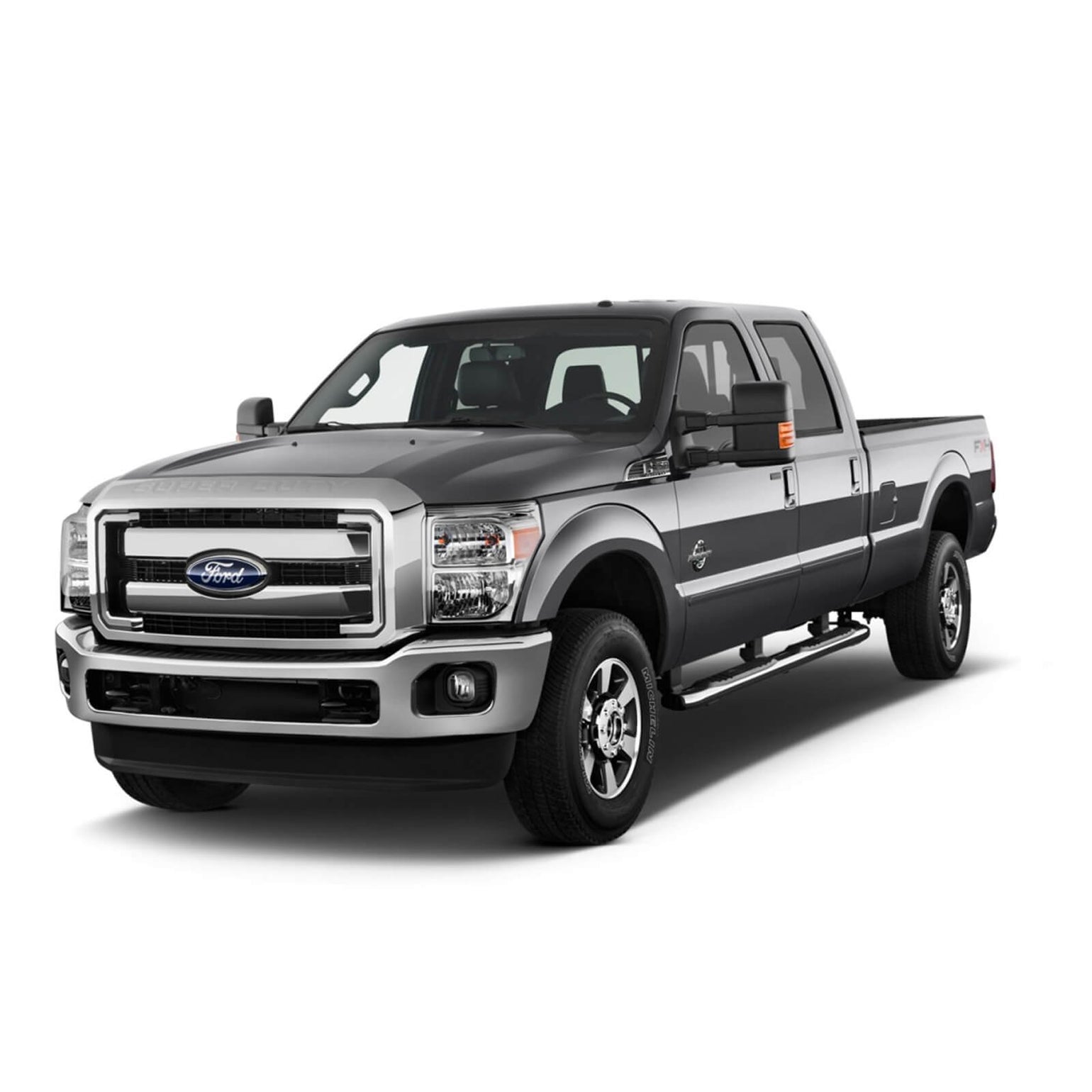

First Generation (2011-2016)

Launched in 2011, this generation marked a major leap in Ford diesel engine technology. It features a dense graphite cast iron cylinder block, a high-pressure common rail fuel injection system, and a single-stage sequential turbocharger, setting new benchmarks for power and efficiency. However, it still has some common issues.EGR cooler carbon deposits can be managed by regular cleaning or installing an EGR delete kit. NOX sensor failure requires sensor replacement or installation of a DPF delete kit. Manifold rupture is addressed by replacing OE parts or modified parts, and intake manifold modification is recommended.

Specifications

Complying with EPA Tier 2 regulations, this engine is manufactured by Ford, with 390 hp of horsepower and 735 lb-ft of torque.

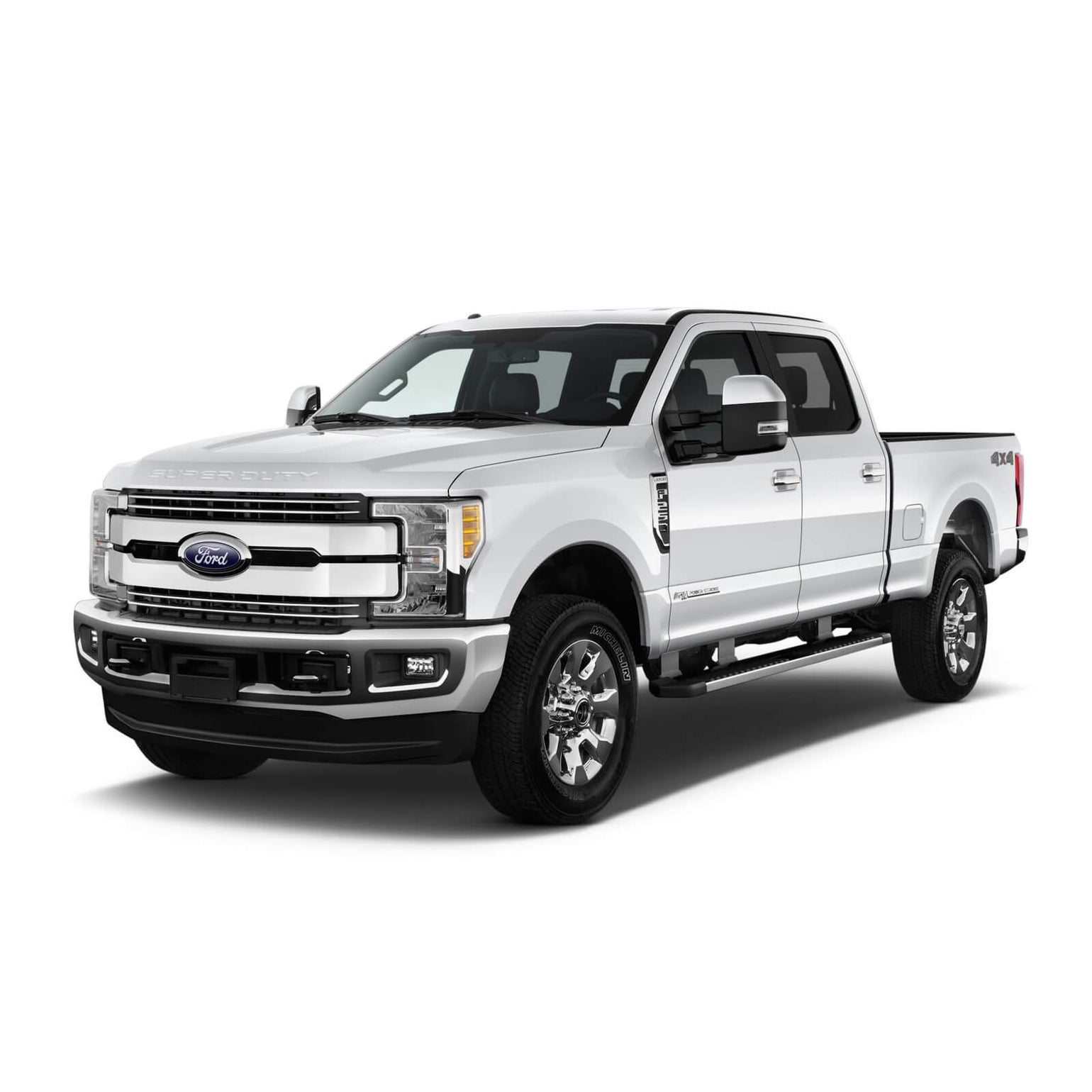

Second Generation (2017-2019)

Produced from 2017 to 2019, this generation addressed many issues of the first-generation model through significant upgrades. These improvements made it a more reliable and powerful option for heavy-duty truck owners.

Specifications

It meets EPA Tier 3 regulations, offering 440 hp of horsepower and 925 lb-ft of torque.

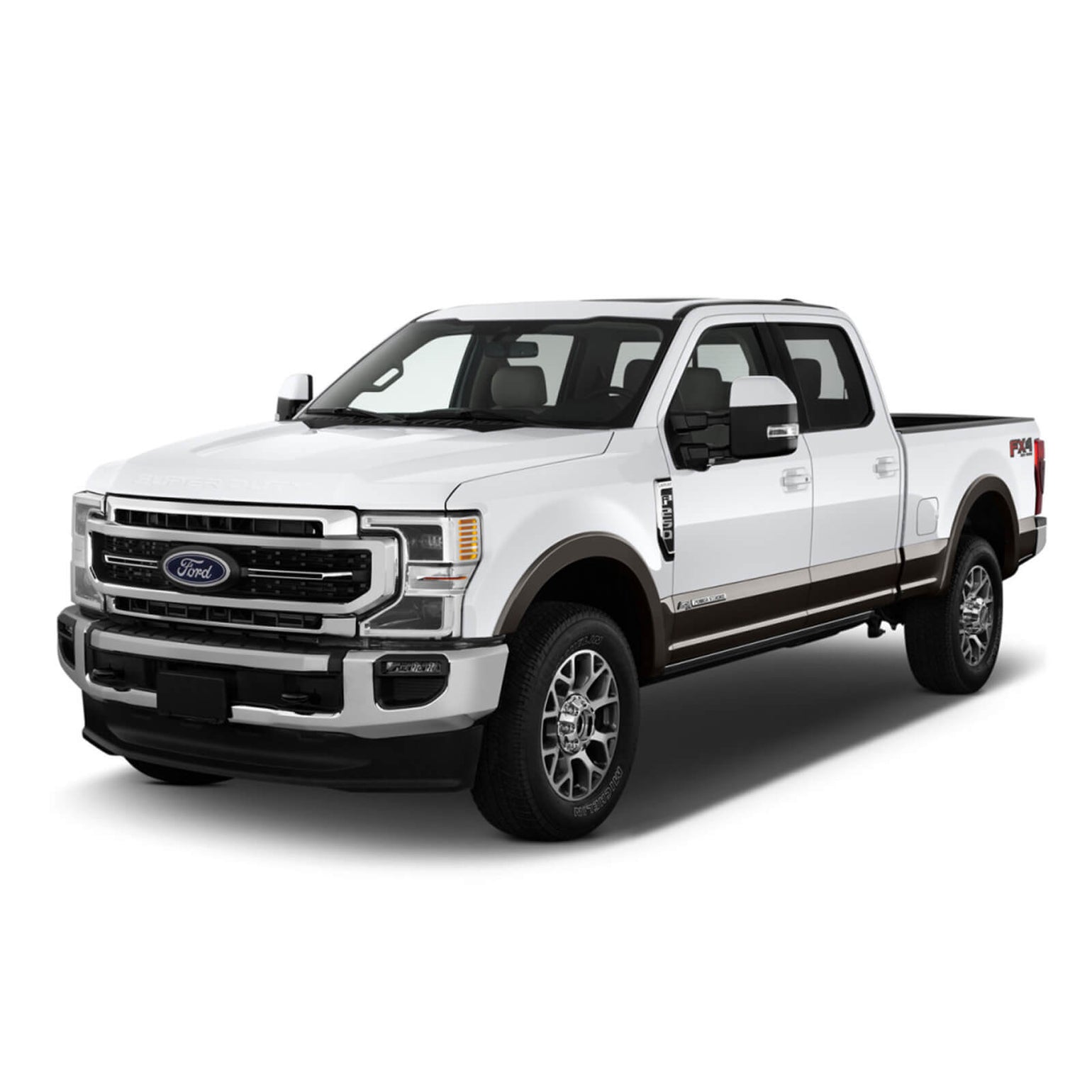

Third Generation (2020-Present)

Introduced in 2020 and still in production, this generation represents the pinnacle of Ford diesel engine technology. In its high-output configuration available for 2023 Ford trucks, it delivers up to 500 horsepower and 1,200 lb-ft of torque, solidifying its leading position in the heavy-duty truck market.

Specifications

Complying with EPA Tier 4 regulations, this engine provides 475 hp of horsepower and 1050 lb-ft of torque.

Installation Guide

Common Installation Tools

Disassembly and assembly tools include sockets, wrenches, screwdrivers, torque wrenches, and specialized tools for accessories such as fuel injectors. Auxiliary tools cover rust remover, cleaning agent, sealant, cutter, and jack. Protection tools consist of gloves and goggles. Measuring tools include tape measure and vernier caliper. Data detection tools require OBD II Equipment.

Installation Precautions

First, avoid high-temperature operations: after turning off the vehicle, wait for high-temperature components such as the exhaust system to cool sufficiently (about 30 minutes) before disassembly or assembly to prevent burns. Second, perform rust removal in advance: screws on high-temperature components and chassis parts are prone to rust, so necessary rust removal should be done before disassembly to avoid screw seizing. Third, wear protective equipment: when modifying or cutting exhaust pipes, wear safety goggles and maintain proper isolation to prevent accidents caused by sparks. Fourth, pay attention to environmental protection: dispose of waste oil, coolant, and other waste materials at designated recycling stations after DIY maintenance or modification.For detailed step-by-step instructions specific to Powerstroke diesel trucks, please visit our Installation Instructions.
