Mini Maxx Tuner Technician's Support

Part One: Technical Overview of the H&S Mini Maxx Tuner

The H&S Mini Maxx stands as a cornerstone in diesel performance, functioning as a high-integration ECU programmer and real-time diagnostic monitor. It is specifically engineered to unlock the latent potential of modern diesel powerplants by recalibrating factory software parameters.

1.1 Core Functions and Performance Dynamics

1. Emissions Management & Race-Specific Deletes

The primary technical utility of the Mini Maxx is its ability to rewrite the Engine Control Unit (ECU) logic. This allows for the physical removal of restrictive emissions components without triggering a "Limp Mode" or a Check Engine Light (CEL).

  • DPF & SCR/DEF Deletes: Disables the regeneration cycles and fluid injection logic.

  • EGR recalibration: Prevents the recirculation of hot exhaust gases into the intake manifold.

  • DTC Suppression: Ensures the vehicle operates seamlessly after hardware modifications by suppressing specific Diagnostic Trouble Codes.

2. Performance Calibration & Power Delivery

The device features a suite of pre-loaded, high-efficiency maps designed to optimize fuel timing, rail pressure, and boost curves.

  • Dynamic Gains: Depending on the application, users can achieve gains ranging from 0 to over 250 HP.

  • Shift-on-the-Fly: On supported models, users can toggle between power levels (e.g., Stock, Mild, Wild, and Hot) in real-time without shutting off the engine.

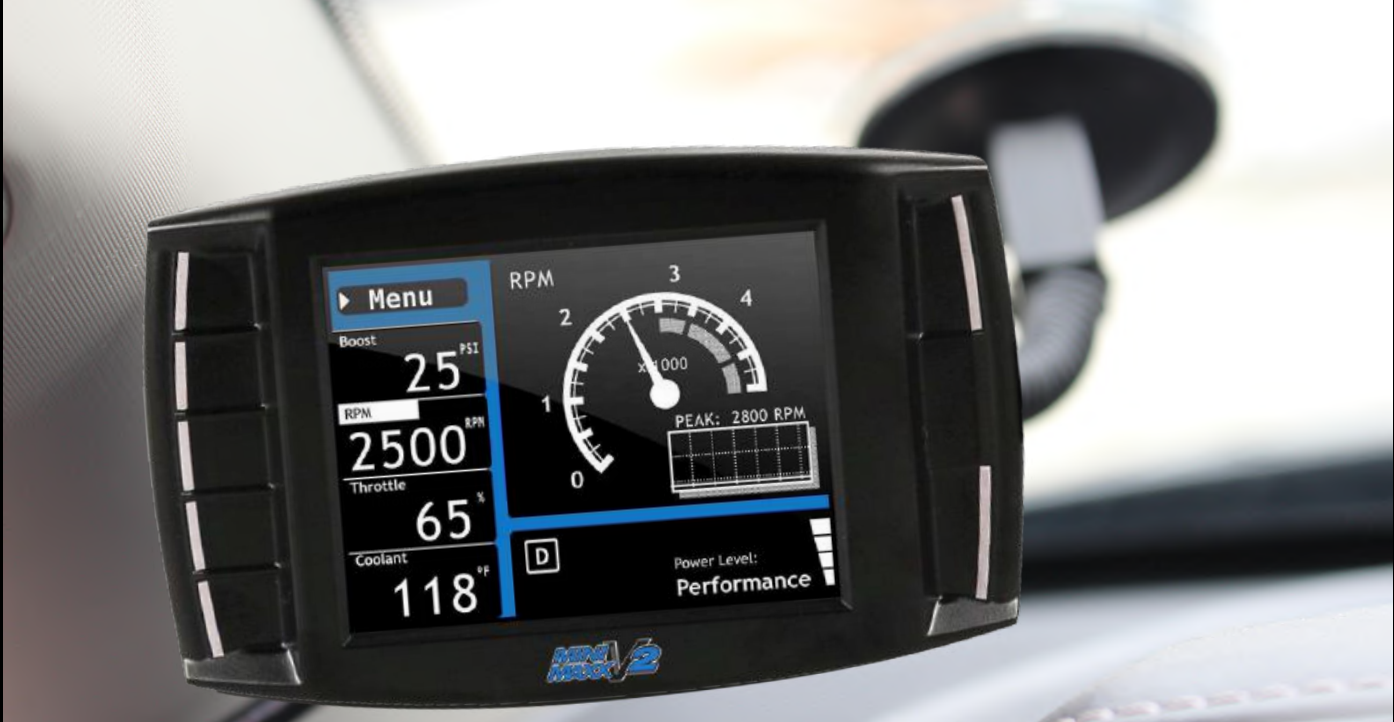

3. Advanced Monitoring and Diagnostics

Beyond tuning, the Mini Maxx serves as a sophisticated digital gauge cluster, providing high-fidelity feedback for over 20 engine parameters:

  • Critical Metrics: Monitor Exhaust Gas Temperature (EGT), Boost Pressure, Transmission Temperature, and Coolant Temperature.

  • Diagnostics: Capability to read and clear manufacturer-specific DTCs, reducing the need for external scan tools during routine maintenance.

4. System Utilities & Customization

The Mini Maxx allows for granular control over the vehicle’s secondary electronic systems:

  • Drivetrain Calibration: Recalibrate the speedometer to maintain accuracy after installing larger-than-stock tires.

  • Speed & Safety: Adjust or entirely remove the factory top-speed governor.

  • Platform Features: Enable specialized OEM functions, such as High Idle mode for cold climates or toggling seat belt chimes and TPMS thresholds.

1.2 The Generational Evolution: Mini Maxx V1 vs. V2

While both generations share the same DNA, the transition from the V1 to the V2 represents a significant shift in hardware architecture and software complexity. Understanding these differences is crucial for selecting the right unit for specific engine platforms.


Mini Maxx V1: The Analog Workhorse

The V1 is the "legacy" edition, revered in the diesel community for its mechanical reliability and proven tuning files. It remains the gold standard for mid-2000s to early-2010s powerplants.

  • Primary Application Range: * Ford: 6.0L (2003–2007) and 6.4L (2008–2010) Powerstroke.

    • Dodge/RAM: 5.9L and 6.7L Cummins (2006–2012).

    • GM: 6.6L Duramax (2007.5–2014).

  • Strengths: Exceptional software stability and "bulletproof" tuning maps that have been refined over a decade of real-world use.

  • Common Challenges: Issues are typically hardware-centric. Users often encounter physical wear and tear, such as oxidized cable contacts, SD card corruption, or power supply fluctuations at the OBD-II port. Its interface, while functional, reflects the era of its inception.


Mini Maxx V2: The Digital Successor

The V2 was engineered to bridge the gap into the modern era, addressing the high-security encryption found in later-model ECUs and offering a more contemporary user experience.

  • Primary Application Range: * RAM: 2013+ models (including those requiring bypass cables).

    • Ford: 6.7L Powerstroke (2015+).

  • Strengths: Expanded vehicle compatibility, a modernized High-Definition UI, and faster processing speeds for data logging.

  • Common Challenges: Unlike the V1’s physical hurdles, V2 issues are predominantly firmware-centric. Because it interfaces with more complex CAN-bus systems, users may encounter system-level logic conflicts, ECU handshake failures, or software "bugs" that require periodic firmware flashes to resolve.


Comparative Summary

Feature Mini Maxx V1 Mini Maxx V2
Era Focus 2003–2012 (Classic Diesel) 2013–Present (Modern Diesel)
Interface Legacy / Text-based Modern / Graphic-rich
Failure Mode Physical/Hardware (Cables/SD) Logical/Software (Firmware/Sync)
Stability Extremely High (Mature Maps) Moderate (Evolving Updates)

Pro Tip: If you are running an older 6.4L Powerstroke or a pre-2012 Cummins, the V1 is often preferred for its "set it and forget it" reliability. For newer platforms, the V2 is a necessity to navigate modern ECU protocols.

1.3 Vehicle Compatibility and Power Performance

The H&S Mini Maxx provides comprehensive coverage for the "Big Three" North American diesel manufacturers: Dodge/RAM (Cummins), Ford (Powerstroke), and GM/Chevrolet (Duramax).To help you distinguish between the two hardware generations and understand the performance potential unlocked following emissions system removal, refer to the technical matrices below.


Table 1: Mini Maxx V1 vs. V2 – Feature and Compatibility Matrix

This comparison highlights the shift from the mechanical reliability of the V1 to the modernized, broader compatibility of the V2.

Feature Mini Maxx V1 Mini Maxx V2
Primary Model Years 2003–2014 2013 and Newer
Flagship Engine Support 6.0L/6.4L Powerstroke, 5.9L Cummins 6.7L Cummins, 6.7L Powerstroke
Emissions Delete Capability DPF, EGR, DEF, SCR DPF, EGR, DEF, SCR
User Interface Classic LCD Display Updated UI with Wireless Update Support
Primary Failure Modes Hardware: Power delivery, SD card corruption, cable integrity Software: Firmware glitches, ECU handshake/logic errors

Table 2: Power Level Benchmarks (Post-Emissions Removal)

The following horsepower (HP) gains represent the raw performance unlocked when the engine is no longer restricted by factory emissions hardware.

Vehicle Application Tow Street (Mild) Performance (Wild) Extreme (Hot)
Dodge/RAM Cummins
2006–2007 5.9L +60 HP +120 HP +200 HP
2007.5–2012 6.7L +40 HP +80 HP +120 HP
2013–2018 6.7L +60 HP +120 HP +175 HP
Ford Powerstroke
2003–2007 6.0L +40 HP +80 HP +120 HP
2008–2010 6.4L +80 HP +160 HP +250 HP +300 HP
2011–2014 6.7L +50 HP +100 HP +150 HP
2015–2019 6.7L +50 HP +100 HP +150 HP
GM/Chevrolet Duramax
2007.5–2010 6.6L LMM +60 HP +120 HP +175 HP
2011–2014 6.6L LML +50 HP +100 HP +150 HP
2015–2016 6.6L LML +50 HP +100 HP +150 HP

Technical Disclaimer: > The data presented above is synthesized from historical performance benchmarks. Actual power gains may fluctuate based on mechanical engine health, ambient altitude, fuel cetane ratings, and supporting drivetrain modifications. We highly recommend monitoring EGTs (Exhaust Gas Temperatures) when operating in "Performance" or "Extreme" modes.


Part Two: Installation and Firmware Management

2.1 Physical Installation Protocol

A stable physical connection is the foundation of a successful tune. Follow these steps to ensure hardware integrity:

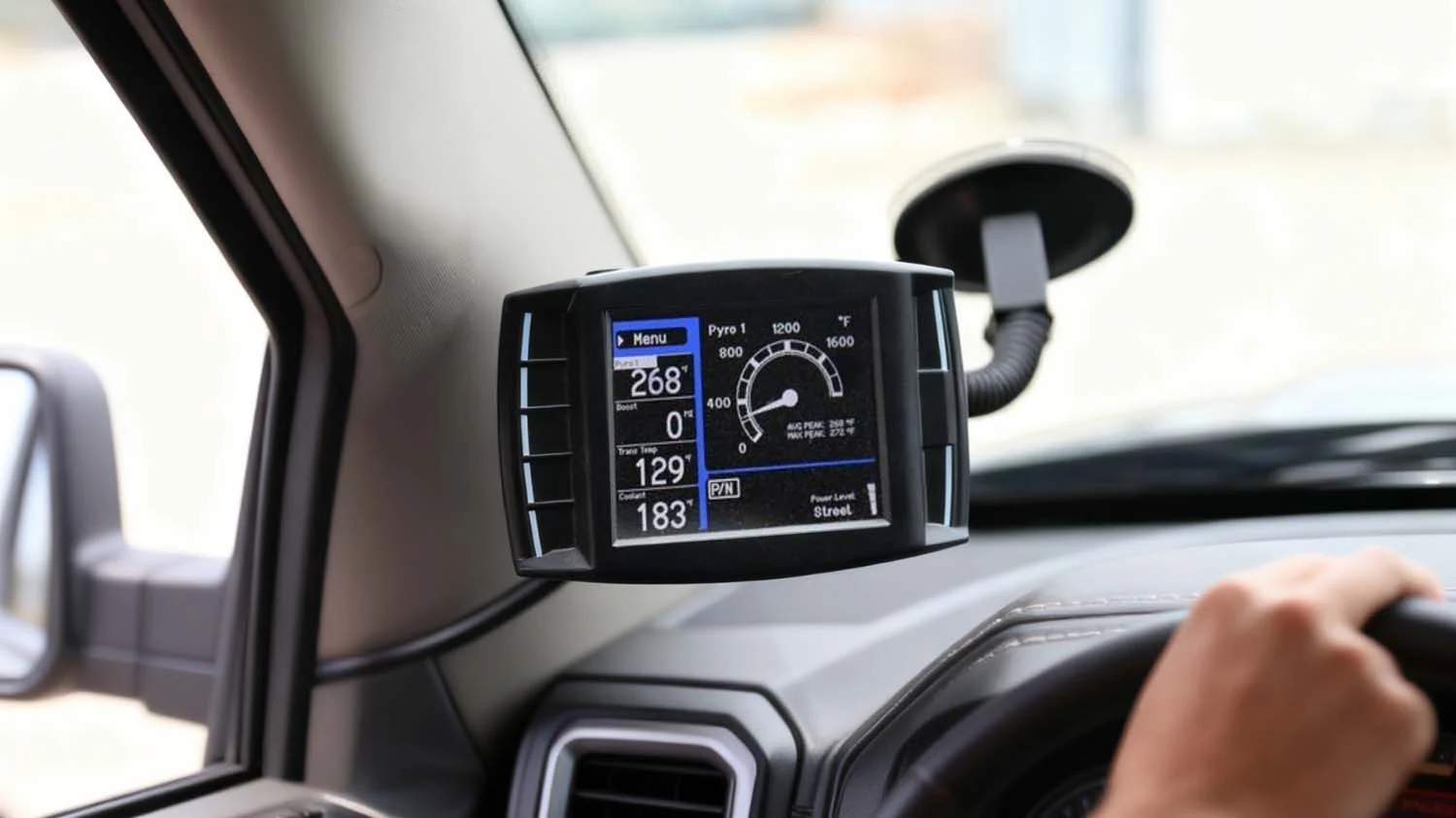

  • Device Mounting: The Mini Maxx features a T-slot mount on the rear chassis. Slide the included suction cup bracket into the slot until secure. Affix the mount to the windshield in a location that provides clear visibility of the gauges without obstructing the driver’s field of vision.

  • OBD-II Adapter Integration: Locate the diagnostic port under the driver-side dashboard. Seat the OBD-II adapter firmly into the port. This adapter acts as the central hub, integrating the main harness, power input, fuse protection, and the USB interface for the EGT probe.

  • Hard-Wiring the Power Lead: To prevent data interruption during ECU flashing, the device must draw stable power from the vehicle’s fuse box.

    • Route the power wire from the adapter to the fuse panel.

    • Critical Step: Use the included fuse tap to connect to a switched ignition source. Ensure the tap is installed on the "dead side" of the socket to ensure the Mini Maxx is protected by the vehicle’s primary fuse circuit.

  • EGT Probe (Optional): If utilizing a Pyrometer kit for EGT monitoring, connect the thermocouple leads to the four-pin USB port located on the side of the OBD-II adapter.


2.2 Platform-Specific Requirements & Pre-Tuning Checklist

Before initiating the software flash, verify these model-specific requirements:

  • 2018+ RAM Cummins: These vehicles utilize a security gateway. A Security Gateway Bypass Cable is mandatory. Connect one end to the green instrumentation connector behind the dashboard and the other directly to the tuner harness.

  • Ford & RAM Throttle Valves: On most 6.7L platforms, the factory throttle valve plug must be disconnected to ensure it remains locked in the "Fully Open" position during operation.

Universal Pre-Flashing Checklist:

  1. Voltage Stability: Battery voltage must remain above 12.5V. Voltage drops during a flash can result in a "bricked" ECU. Recommendation: Connect a 10A+ battery charger/tender during the entire process.

  2. Physical Hardware Removal: The tuning software suppresses the logic for DPF/SCR/EGR. However, the hardware must be physically removed or blocked off immediately following the flash to prevent mechanical failure or soot buildup.

  3. Legacy Software Clearance: Ensure the vehicle is returned to the "True Stock" factory calibration if a different tuning brand was previously used.


2.3 Mini Maxx V1: Legacy Maintenance & Best Practices

The V1 hardware requires specific maintenance to avoid common issues like "Error 399," black screens, or failed writes.

SD Card Management

The V1 is highly sensitive to storage media. Follow these strict requirements:

  • Capacity: Use 2GB to 8GB cards only (SanDisk or Kingston preferred).

  • Formatting: Must be formatted to FAT32. Larger capacities or exFAT formats will cause communication failures.

  • Directory: Ensure all .bin or tune files are placed in the Root Directory (not inside folders).

Firmware Integrity

  • Compatibility: Never attempt to flash V2 firmware onto a V1 unit; this will cause permanent hardware failure.

  • Continuity: Do not cycle the ignition key or remove the SD card while the status bar is moving.

Advanced Troubleshooting

  • CAN-Bus Interference: If the tuner causes erratic behavior in the vehicle's infotainment, A/C, or dashboard, utilize an OBD-II Splitter to help isolate signal noise.

  • Installation Verification: To confirm a successful flash, navigate to Menu > Settings > Tune Status. The display must read "Installed" to indicate the delete logic is active.

Mini Maxx V1 Installation Manual Download:

Mini Maxx V1 Installation Manual DOWNLOAD

2.4 Mini Maxx V2: Modern Performance & Firmware Management

The Mini Maxx V2 is a sophisticated digital tool that interfaces with complex modern CAN-bus systems. Because of its advanced logic, it is highly sensitive to environmental variables during the installation process. Following these best practices is essential to prevent "handshake" failures or device lockouts.


Critical Storage & File Requirements

Unlike older hardware, the V2 requires precise file architecture to communicate with its internal processor:

  • Media Specifications: Use a high-quality 2GB, 4GB, or 8GB Micro SD card (SanDisk or Kingston are the industry standards for stability).

  • System Format: The card must be formatted to FAT32. Avoid exFAT or NTFS, as these will lead to file-reading errors.

  • Maintenance: It is highly recommended to perform a full format of the SD card before every firmware update to clear residual cache or corrupted sectors.

Secure Firmware Deployment

  • Download Protocol: Always utilize a dedicated PC or Mac to download update files. Avoid mobile devices or tablet browsers, which can truncate file headers.

  • Directory Structure: Extract (unzip) all files and move them directly to the root directory of the SD card. The V2 will not recognize files nested within folders.

  • Update Continuity: Under no circumstances should you cycle the ignition, disconnect the OBD-II cable, or remove the SD card while the device is in "Write" mode.

Power & Gateway Integration

  • Fuse Tap Accuracy: Ensure the power lead is connected to a Keyed Accessory (ACC) or Ignition (IGN) fuse slot in the ECM panel.

  • Voltage Verification: Use a multimeter to confirm a consistent 12V–14V signal at the chosen fuse before final connection. Connecting to a "constant power" fuse may lead to parasitic battery drain.

  • Bypass Cables: For 2018+ RAM models, double-check that the security gateway bypass is fully seated. A loose connection here is the leading cause of "ECU Not Found" errors.

Post-Installation Verification

The V2 requires a specific "handshake" period at the end of the flashing process. Do not shut off the vehicle or disconnect the unit until the screen explicitly confirms the process is complete and returns you to the main gauge interface.

How to verify your status:

  1. Navigate to: Menu > Settings > Tune Status.

  2. "Installed": The delete logic and performance maps are active.

  3. "Not Installed": The flash was interrupted or failed. You must restart the installation process to avoid "Limp Mode."

Mini Maxx V2 Installation Manual Download:

Mini Maxx V2 Installation Manual DOWNLOAD

2.5 Critical Protocol for V2 Firmware Updates

The firmware update process for the Mini Maxx V2 is governed by a rigid protocol. Any deviation from these steps—particularly regarding file systems and card naming—can lead to the device being "bricked" (permanently disabled) or stuck in an unrecoverable boot loop.


Pre-Update Requirements

  • Hardware: A Windows-based PC, a high-quality Micro SD to USB adapter, and a compliant Micro SD card.

  • Compatibility: DO NOT attempt to apply this update to Mini Maxx V1 hardware.

The "Gold Standard" for SD Card Preparation

The V2 is highly sensitive to storage parameters. Failure to meet these exact specifications is the leading cause of the "Missing SD Card" error.

  • Capacity: Strictly 2GB, 4GB, or 8GB (SanDisk or Kingston preferred). Cards 16GB or larger are incompatible with the V2 bootloader.

  • Format: The card must be formatted to FAT (Standard FAT). Note that FAT32 and exFAT, while common, will often result in fatal communication errors.

  • Volume Label: The SD card must be named exactly MINI MAXX (all caps, no quotes).


Step-by-Step Update Execution

  1. Return to Stock: Before initiating any firmware changes, you must use the tuner menu to "Return to Stock." This unmarries the device from the vehicle's VIN and restores the factory ECU settings.

  2. File Extraction: Download the V2 update package and unzip it to your desktop.

  3. Root Transfer: Open the unzipped folder and copy the contents (all files and subfolders) directly to the root directory of the SD card.

    Note: Do not copy the parent folder itself; the tuner’s operating system cannot navigate sub-directories to find boot files.

  4. Firmware Flash: Insert the prepared card into the tuner and power it on. Navigate to Menu > Update Firmware. The device will automate the process and may reboot several times. Never interrupt power during this phase.

  5. Re-Installation: Once the firmware is updated, reconnect to the vehicle and select Install Download to re-apply your performance and delete calibrations.


Technical Analysis: Understanding Software Fragility

The procedural intensity of the V2 update process highlights a significant reliance on a legacy software architecture. While modern consumer electronics feature robust fault tolerance—such as universal file system support and automated error-checking—the Mini Maxx V2 operates on a more primitive framework.

Key Structural Limitations Include:

  • Outdated File Systems: Dependency on the FAT (Standard) format rather than more stable, modern variants.

  • Minimal Error Checking: The device lacks a sophisticated verification layer during file transfers, meaning a single misplaced file or an incorrect card name will lead to system failure.

  • User-Dependent Stability: The burden of ensuring a flawless environment (voltage, formatting, and directory structure) is placed entirely on the user.

Common issues such as "Black Screens," "Recovery Mode Loops," and "Missing SD Card" errors are typically not hardware defects, but rather the result of this fragile logic architecture failing to handle minor procedural variances. Strict adherence to the protocol is the only way to ensure device longevity.

Part Three: Master Troubleshooting & Error Code Encyclopedia

This comprehensive guide consolidates all known technical issues, error codes, and platform-specific bugs for the H&S Mini Maxx V1 and V2.

3.1 General System & Communication Failures

Symptom / Error Possible Cause Resolution
Black Screen / No Power Voltage < 12.5V; Loose HDMI/OBDII cable; CAN-bus interference. Charge battery; reseat cables; remove OBDII Y-splitters or other diagnostic tools.
"Missing SD Card" / Error 0 Incorrect File System (must be FAT, not FAT32/exFAT). Reformat SD card to FAT. Ensure card name is exactly MINI MAXX.
"Please connect MiniMaxx V2 drive" Incorrect card name or format. Rename card to MINI MAXX and ensure FAT formatting.
Initializing Communication Hang Software handshake delay. Press the top-left button on the tuner. If it persists, power cycle the unit.
Infinite Vehicle Selection Loop Internal software logic failure. This is a rare hardware-level bug. If the loop continues after a reboot, the unit may require warranty replacement.
Check Engine Light (CEL) On Tune not fully written to ECU. Verify status: Menu > Settings > Tune Status. If "Not Installed," re-run the flash and ensure "DPF Removed" is selected.

3.2 Ford Powerstroke Specifics (6.0L, 6.4L, 6.7L)

  • P04E3 / Crankcase Code (2016 6.7L):

    • Cause: Firmware attempts to detect a PCV sensor that is absent on certain 2016 builds.

    • Solution: Download the patch file MGGDT.IT1, place it in the FORD folder on the SD card, and re-flash.

  • "Unrecognized Part Number" (2011–2015 6.7L):

    • Cause: Ford's constant calibration updates exceed the tuner's built-in database.

    • Solution: 1. Note the error filename (e.g., DC20BMF.MM).

      2. Insert SD card into a PC. Open the folder for your year (FORD67, FORD13, or FORD15).

      3. Find any file where the first 4 digits match your error (e.g., DC20xxx.MM).

      4. Copy that file, paste it into the same folder, and rename the copy to match your exact error code.

  • "Unrecognized Part Number SPRAxxxx.MM":

    • Cause: A Spartan Tuner was previously installed, "hijacking" the PCM.

    • Solution: The vehicle must be flashed back to "As Built" status by a dealer using an IDS (Integrated Diagnostic System) before the Mini Maxx can install.

  • Boost Drop / Power Loss (2017–2019):

    • Solution: Unplug the factory EGT sensor connector and clear the resulting DTCs. Power will return, though EGT monitoring via the tuner will be disabled.


3.3 RAM Cummins Specifics (5.9L, 6.7L)

  • Boost Caps at 20 PSI (2013–2021):

    • Solution: For 2013–2018, update to the latest firmware to apply the BETA fix. 2019+ fixes are currently in development.

  • Engine Loping/Surging (2014–2015):

    • Solution: Update device firmware to version 2.0.0.4 or higher.

  • "Part Number Not Supported" (2018+):

    • Cause: Dealer software updates changed the PCM part number to an alpha-prefix (starting with a letter).

    • Solution: Attempt a firmware update. If it fails, the current tuner version is incompatible with that specific OEM reflash.


3.4 GM Duramax Specifics (LMM, LML)

  • Error Code 312 (2007.5–2010 LMM):

    • Solution: Go to "Show Settings" > Hold bottom-left key for 10 seconds > Enter code 0468. Select Reset Unit, then go directly to Install Download (do not re-select the vehicle).

  • Error Code 316:

    • Cause: Remaining "imprints" from a previous non-H&S tuner.

    • Solution: Requires a factory reflash at a dealer to return the ECM to a "clean" stock state.

  • 2015+ Duramax (LML) Incompatibility:

    • Notice: The Mini Maxx will not work on 2015+ GM trucks. Check your VIN (10th digit: F=2015, G=2016). Use an EZ Lynk platform for these years.

  • LML Limitations: Cab and Chassis models with dual tanks will have the rear tank disabled; the boost gauge function is unsupported on these models.


3.5 Technical Protocol: Firmware Recovery & Manual Updates

If your unit requires a manual file refresh or you are resolving an Error 0 / Missing SD issue:

  1. Format: Use a Windows PC to format a 2GB–8GB card to FAT (Standard).

  2. Naming: Name the volume MINI MAXX.

  3. Extraction: Unzip the 1.2GB download package.

  4. Transfer: Copy the files and folders inside the unzipped directory directly to the SD card root. Do not drag the single parent folder onto the card.

  5. Overwrite: If prompted, select "Yes" to overwrite all existing files.

  6. Verification: Check Menu > Settings > Tune Status to ensure the versioning and installation state are correct. Note: Due to a current bug, the version number may not change visually, but the underlying tune maps will be updated.


Hardware Warning: Always ensure your fuel rail sensor is healthy. Error codes P0088 or P0513 often indicate a physical burnout of the sensor rather than a software glitch.

6.7 Powerstroke Mini Maxx Tuner - How to Install it the RIGHT WAY for EGR/DPF/DEF Delete
