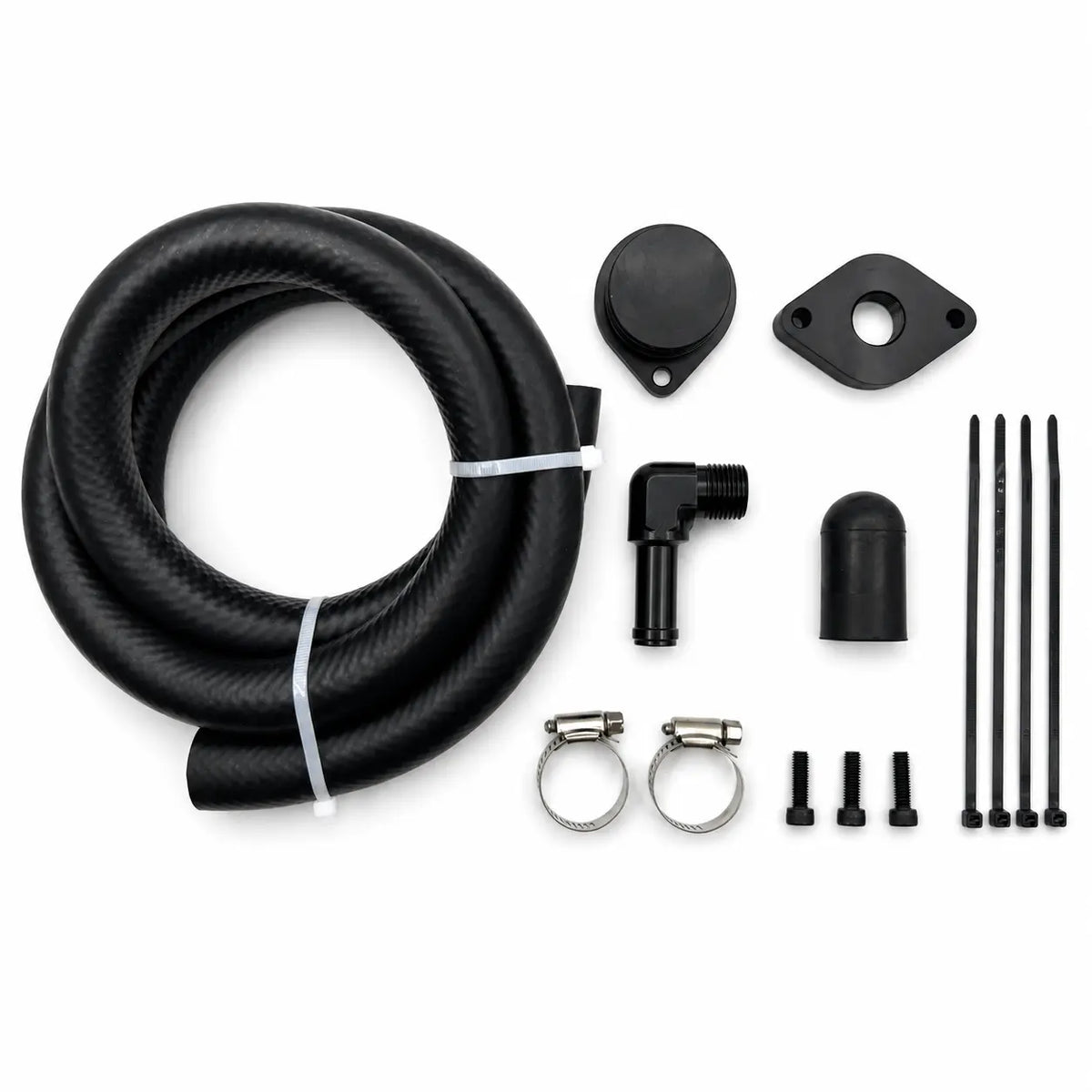

2011-2025 6.7L Powerstroke CCV Reroute/Delete Kit
Protect your engine’s intake system and turbocharger with the CCV Reroute Kit, the ultimate crankcase ventilation solution for the 2011-2025 Ford 6.7L Powerstroke. The factory Closed Crankcase Ventilation (CCV) system is known for venting oily mist back into the turbo inlet, leading to oil-soaked intercoolers and power-robbing carbon buildup on intake valves.
This premium reroute kit effectively diverts oil-laden crankcase gases away from your intake, ensuring your Super Duty breathes only clean, fresh air. By preventing oil deposits, you maintain the balance of your compressor impeller and maximize the cooling efficiency of your intercooler.
Key Performance Benefits
-
Complete Intake Protection: Stops oil vapor from entering the turbocharger, intercooler, and intake piping, preventing the "sludge" buildup that degrades engine performance over time.
-
Turbocharger Longevity: Maintains the precision balance of the turbo compressor wheel by eliminating sticky oil residue that can cause premature wear and failure.
-
100% Oil Capture Efficiency: Features an internal catch can and reservoir system designed to trap oil molecules before venting, ensuring only oil-free gases are expelled.
-

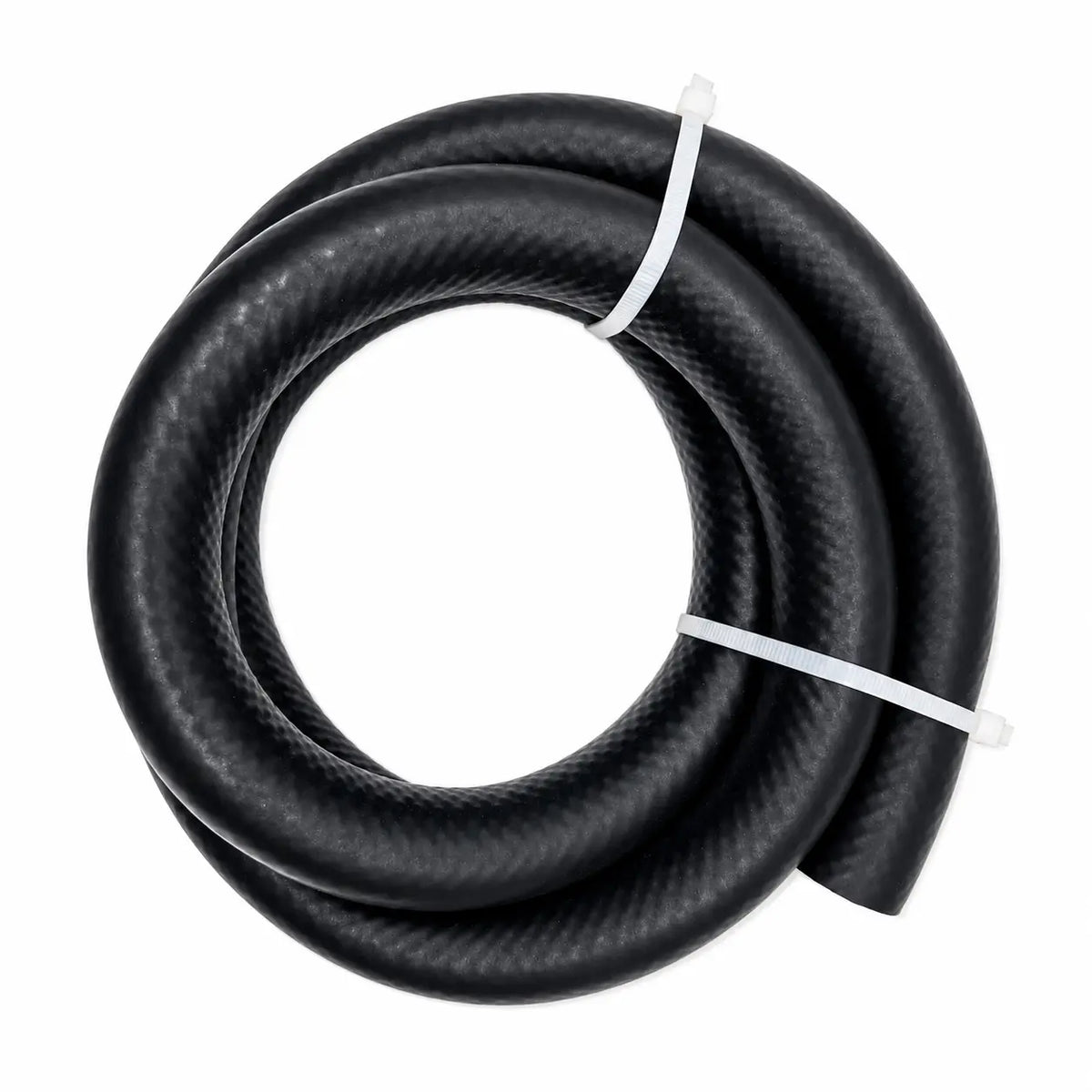

Reinforced Silicone Construction: Includes a 100% silicone reinforced hose that is chemical and heat resistant, significantly outlasting standard rubber hoses.
-

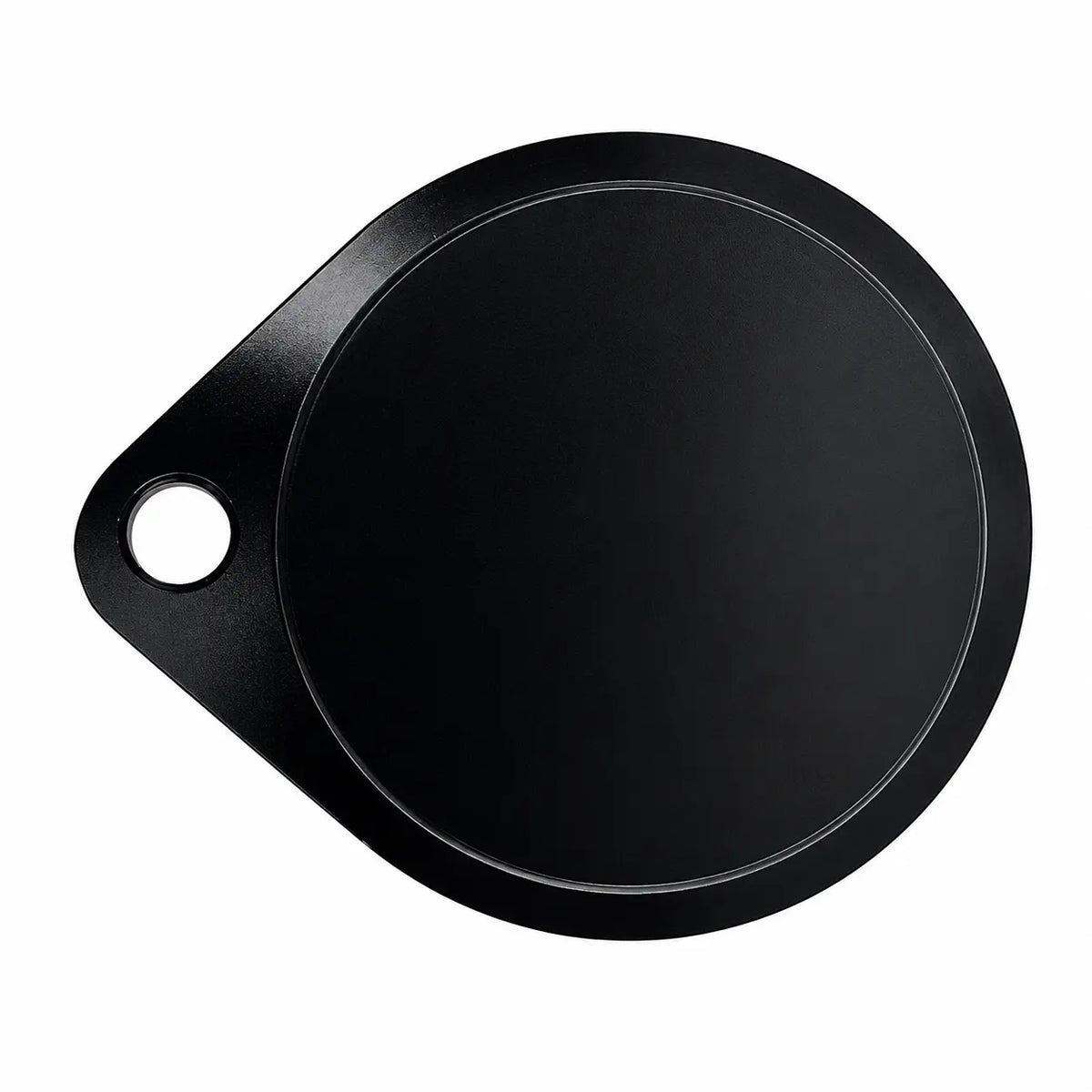

Superior Sealing Solution: Features a rubber-gasketed blocking plate for a leak-proof seal. The kit is designed to interface perfectly with factory spacers for a professional, factory-style finish.
-
Maintenance-Free Design: Innovative filtration and routing eliminate the need for regular manual maintenance or filter changes.
Technical Specifications
| Attribute |
Detail |
| Engine Compatibility |
6.7L Powerstroke V8 Diesel |
| Model Years |
2011 - 2025 |
| Vehicle Fitment |
Ford F-250 / F-350 / F-450 / F-550 Super Duty |
| Hose Material |
High-Temp Reinforced Silicone |
| Hardware |
Corrosion-Resistant Billet Aluminum & Zinc-Plated Bolts |
| Usage |
Off-Road & Competition Use Only |
Detailed Vehicle Fitment Guide
This kit is a precision-fit upgrade for the following 6.7L Powerstroke trucks:
-
2011-2025 Ford F-250 / F-350 / F-450 / F-550
-
Fits Pickup and Cab & Chassis (C&C) Models
-
Compatible with all 6.7L generations, including the latest High Output (HO) variants.
Why Upgrade Your CCV System?
On the 6.7 Powerstroke, oily blow-by gases eventually coat the internal fins of the intercooler, significantly reducing its ability to cool the intake air. This results in higher Exhaust Gas Temperatures (EGTs) and a loss of horsepower. This CCV Reroute Kit is an essential reliability mod that simplifies your engine's ventilation path, removes the need for expensive factory CCV filters, and keeps your entire intake tract factory-clean.
Frequently Asked Questions (FAQ)
Q: Does this kit require regular draining?
A: No. This enhanced design is engineered to be maintenance-free, effectively managing pressure without the need for manual oil draining.
Q: Will this cause an oil smell inside the cab?
A: Because the kit includes a hose, you can route the vented gases far back toward the frame rail, keeping odors away from the cabin air intake.
Q: Is this kit compatible with stock and tuned trucks?
A: Yes. It is highly recommended for stock trucks to prevent future sludge buildup and is a mandatory upgrade for tuned trucks to handle increased crankcase pressure.
System Benefits & Performance
Q1: Why should I replace or delete the factory Crankcase Ventilation (CCV) system?
- The Problem: Over time, the factory CCV system dumps oil-saturated vapors back into your turbo inlet. This creates a thick oil sludge that coats the intercooler, intake pipes, and valves, restricting airflow and killing engine efficiency.
- The Solution: A CCV delete kit addresses this at the source by rerouting those messy gases away from your intake, ensuring your engine breathes only clean, fresh air.
Q2: What exactly is a CCV reroute?
- A CCV reroute is a modification that diverts oily crankcase "blow-by" gases away from the intake system. By venting these gases elsewhere, you prevent carbon deposits and oil sludge from accumulating in your high-dollar intercooler and intake manifold.
Q3: What are the main advantages of installing a CCV reroute on my truck?
- Beyond keeping your intake tract bone-dry, a CCV reroute improves long-term engine performance, extends the life of turbo components and rubber boots (which oil can rot), and significantly lowers your long-term maintenance costs.
Q4: How often does the factory CCV filter need to be replaced?
- The OEM Ford filter typically requires replacement every 30,000 to 50,000 miles. By upgrading to a CCV delete kit, you move to a maintenance-free setup, permanently eliminating the need for future filter purchases.
Compatibility & Troubleshooting
Q5: Do I need to perform an EGR delete before rerouting the CCV system?
- No. These are two independent modifications. You can reroute your CCV while keeping the EGR system fully functional, and vice-versa. However, running both together provides the cleanest possible engine operation.
Q6: What are the signs of a clogged or faulty CCV system?
- Watch for the following "red flag" symptoms:Noticeable loss in engine power.Excessive oil consumption between changes.Visible oil residue in the intercooler pipes or turbo inlet.Oil seepage around the turbocharger seals or valve cover gaskets due to high crankcase pressure.
Q7: Can the factory CCV filter be cleaned and reused?
- No. Most factory CCV filters use a saturated media designed for one-time use. Attempting to clean them is ineffective and can lead to pressure issues. A permanent CCV delete kit is the only cost-effective, long-term solution.
Q8: Will a CCV modification affect my fuel economy?
- Yes, positively. A faulty factory system allows oil vapors to alter the air-fuel ratio and gunk up sensors, reducing efficiency. A CCV reroute keeps the intake clean and the sensors accurate, helping your engine maintain peak MPG.
Installation & Warranty
Q9: Will a CCV reroute or delete void my vehicle’s warranty?
- This depends on your local dealership’s policy. While the Magnuson-Moss Warranty Act provides some protection, many dealers view emissions modifications as grounds for denying powertrain claims. We recommend checking with a diesel-friendly shop before installation.
Q10: Can I install a CCV reroute or delete kit by myself?
- Absolutely. These kits are designed for a "bolt-on" installation. If you have basic mechanical skills and standard hand tools, you can typically complete the job in under an hour following the included instructions.
Q11: Will this modification trigger a Check Engine Light (CEL) or codes?
- No. Our CCV reroute systems are engineered to work seamlessly with the factory engine management system. They will not trigger a CEL or any Diagnostic Trouble Codes (DTCs).
Q12: How does this system reduce overall oil consumption?
- By effectively separating oil vapors from the crankcase exhaust, the system ensures that oil stays in the engine for lubrication rather than being sucked into the turbo and burnt out the tailpipe.
