2020-2022 Ford 6.7L Power Stroke All-in-One Delete Kit | DPF, EGR, DEF + Tuner
Unlock the legendary reliability and performance of your 2020-2022 Ford F-250, F-350, or F-450 with our ultimate 6.7L Power Stroke All-in-One Delete Kit. This comprehensive package is engineered to bypass the restrictive factory aftertreatment systems—DPF, DEF, and EGR—which are the primary causes of "limp mode" and expensive repairs.
Paired with the industry-leading EZ LYNK Auto Agent 3, this kit provides a seamless, cloud-connected tuning experience, allowing you to monitor engine vitals and adjust power levels directly from your smartphone.

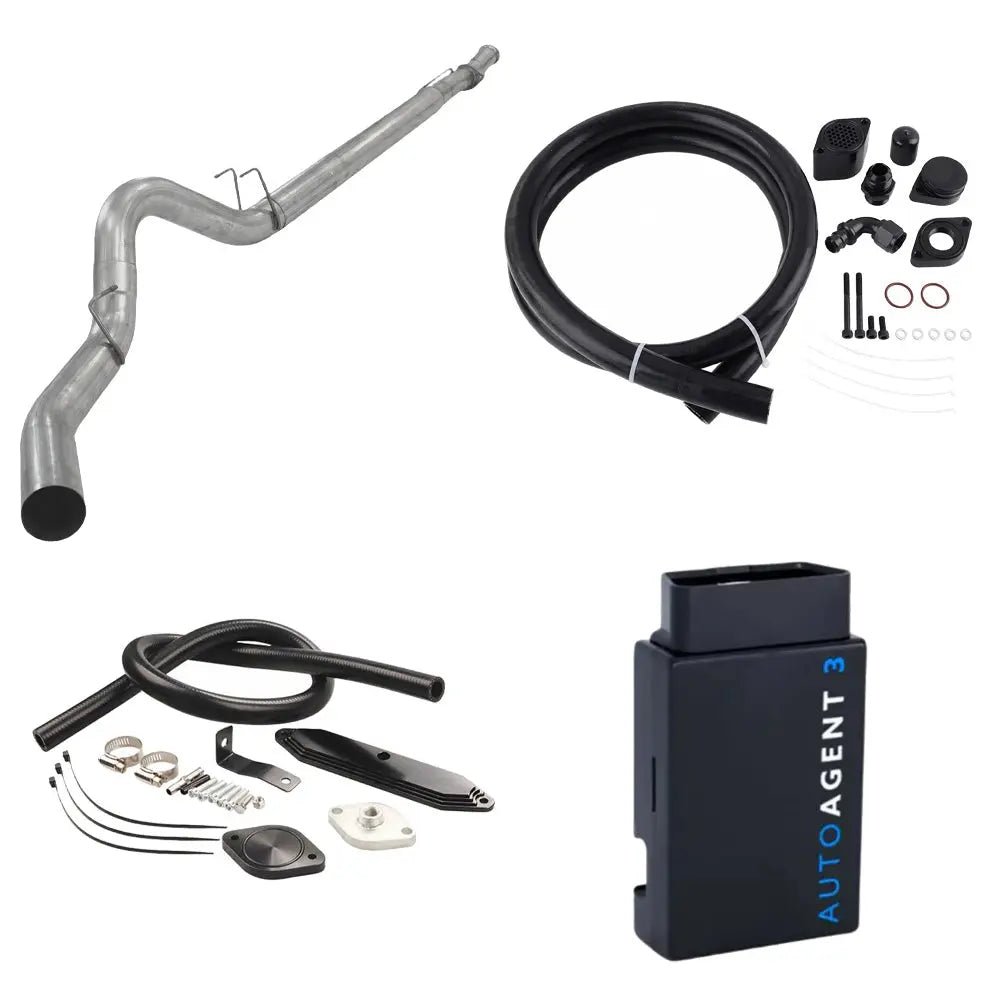

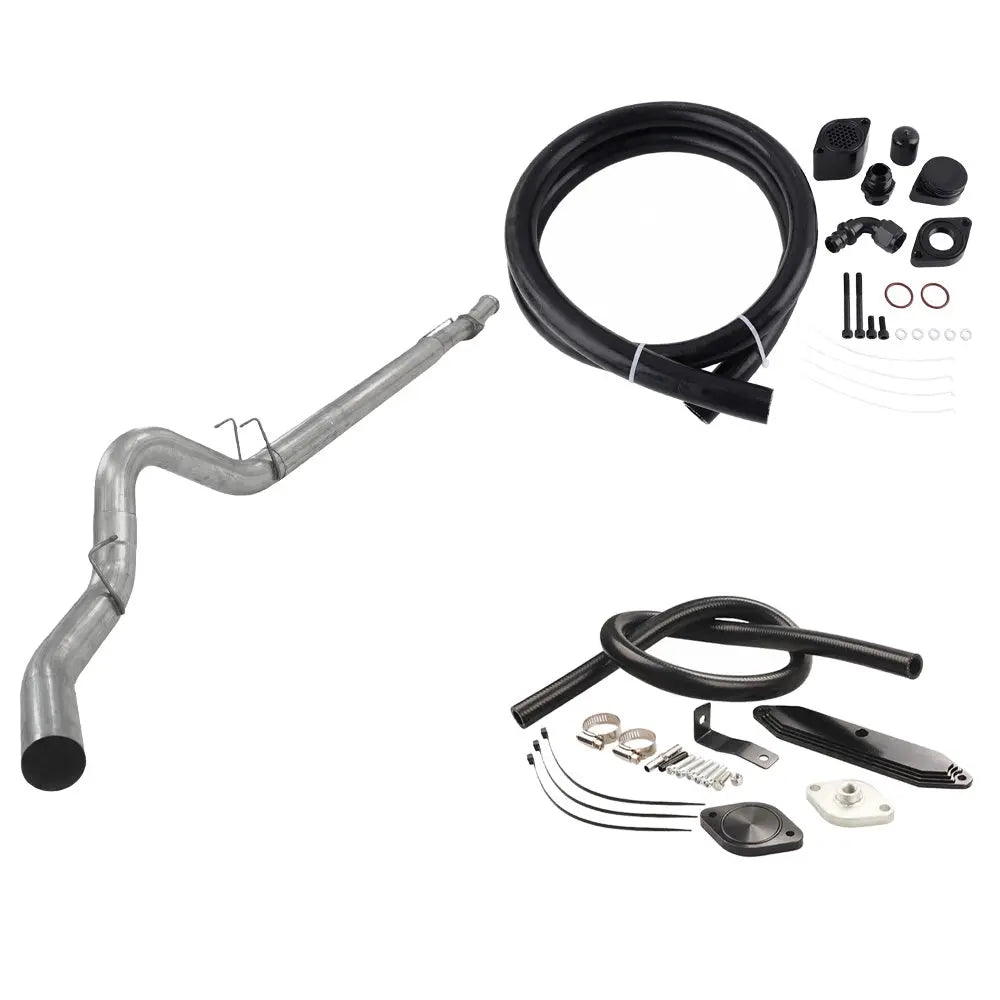

What’s Included in the All-in-One Bundle
-
EZ LYNK Auto Agent 3 Tuner: Includes a full support package with custom cloud-based calibrations designed specifically for the 10-speed Ford platform.
-
Heavy-Duty Race Pipe: Choose between a 4" or 5" Downpipe-Back system or a 4" DPF Race Pipe to maximize exhaust flow.
-
Full EGR Delete w/ Flow-Through Plate: Completely blocks the Exhaust Gas Recirculation system, preventing hot soot from re-entering your intake and cooling system.
-
CCV Delete Kit: Reroutes crankcase vapors to prevent oily sludge from coating your turbocharger and intercooler.
EZ LYNK SOTF Power Levels
For the 2020-2022 6.7L Power Stroke, enjoy Switch-on-the-Fly (SOTF) capabilities. Transition between 5 performance levels instantly:
-
Level 1 (Stock Optimized): 0 HP (Optimized efficiency with emissions removed)
-
Level 2 (Heavy Tow): +40 HP (Maximized torque for heavy trailers)
-
Level 3 (Light Tow): +80 HP (The perfect balance for daily utility)
-
Level 4 (Performance): +100 HP (Greatly improved throttle response)
-
Level 5 (Max HP): +150 HP (The safe limit for factory turbo and intake)
Key Performance Benefits
-
Eliminate Costly Regens: Say goodbye to DEF tank failures and clogged filters forever. Enjoy a cleaner exhaust path and significantly lower Exhaust Gas Temperatures (EGTs).
-
Improved Fuel Economy: By deactivating the "regeneration" cycles and removing exhaust bottlenecks, owners report an immediate increase in MPG.
-
Enhanced Engine Reliability: Bypassing the EGR eliminates common cooler failure points and keeps your engine oil cleaner for longer intervals.
-
Unrestricted Power: Removes factory torque management limitations and the speed governor, allowing you to access the full potential of your Power Stroke.
Technical Specifications & Fitment
| Attribute |
Detail |
| Engine Compatibility |
6.7L Power Stroke V8 Turbo Diesel |
| Model Years |
2020, 2021, 2022 |
| Vehicle Fitment |
Ford F-250 / F-350 / F-450 Super Duty |
| Material |
T-409 Stainless Steel & Billet Aluminum |
| Tuning Interface |
EZ LYNK Auto Agent 3 (Cloud-Based) |
| Usage |
Off-Road & Competition Use Only |
Performance & Specifications
Q1: What’s the difference between 4-inch and 5-inch exhaust systems?
- 4-inch Systems: Best for stock to moderately tuned trucks. It maintains ideal backpressure to keep your low-end torque snappy—perfect for daily driving and heavy towing.
- 5-inch Systems: Engineered for high-horsepower builds (500+ RWHP). These maximize flow to drop Exhaust Gas Temperatures (EGTs) and deliver that deep, aggressive "straight-pipe" growl.
Q2: Can a magnet stick to this pipe? Is it actually stainless steel?
- Yes. This system is built from T-409 Stainless Steel. Unlike 304-grade (non-magnetic), T-409 contains higher iron content, making it magnetic. It offers superior corrosion resistance over aluminized steel and is the industry standard for durability in harsh North American winters.
Q3: How thick is the tubing and what is its lifespan?
- We use 14-gauge (approx. 2mm) T-409 stainless steel. It strikes the perfect balance between weight and structural integrity, ensuring your exhaust survives heat cycles and road debris for years to come.
DPF Delete & Race Pipes
⚠️ LEGAL DISCLAIMER: Under the U.S. Clean Air Act, these components are sold strictly for OFF-ROAD / RACING USE ONLY. Use on public highways is a violation of EPA federal law and may result in significant fines.
Q4: Will a DPF delete kit improve my truck’s performance?
- Absolutely. By removing the restrictive factory filter, you will see:Substantially lower EGTs.Improved turbo spool-up (less lag).Better fuel economy (when paired with proper tuning).An end to "Limp Mode" caused by DPF clogging or sensor failures.
Q5: What exactly is a DPF delete race pipe?
- It is a direct-replacement straight pipe that swaps out the factory Diesel Particulate Filter. It eliminates the single biggest bottleneck in your exhaust, allowing your 6.7L Powerstroke to breathe freely.
Q6: Is a DPF delete legal for street use in the US?
- No. Removing emissions equipment violates EPA and CARB regulations for on-road vehicles. Check your local and state laws regarding emissions testing (Smog Checks) before purchasing.
Q7: Do I need a tuner after installing a delete pipe?
- Yes, mandatory. The 6.7L Powerstroke PCM must be "flashed" with a DPF-off tune (e.g., EZ Lynk, EFI Live, or SCT). Without a tuner, the truck will throw a Check Engine Light (CEL) and enter a "Limp Mode" power derate.
Installation & Compatibility
Q8: Will this void my vehicle’s warranty?
- Yes. Most dealerships will flag a deleted truck and deny powertrain-related warranty claims. Proceed with this understanding.
Q9: How difficult is the installation?
- This is a "bolt-on" installation for most experienced DIYers. While basic hand tools work, an automotive lift makes the process significantly faster. Note: Some Crew Cab or Short Bed configurations may require minor trimming of the mid-pipe for a perfect fit.
Q10: Downpipe-Back vs. Turbo-Back: What’s the difference?
- Downpipe-Back: Replaces everything from the factory downpipe to the tailpipe. It’s easier to install and very popular.
- Turbo-Back: Replaces the entire system starting directly at the turbocharger. This offers the absolute maximum performance gain but involves a more labor-intensive installation.
Q11: Is this 5-inch system compatible with Cab & Chassis models?
- No. This kit is designed specifically for standard pickup frames (F-250/F-350/F-450). Cab & Chassis trucks have different frame rails and fuel tank locations that require specialized routing.
Driving Experience
Q12: Will my truck be significantly louder?
- Yes. Expect a more pronounced exhaust note. The 5-inch straight pipe is loud and deep. If you are concerned about "In-Cab Drone" during long highway hauls, we recommend choosing our version with a high-flow muffler/resonator.
Q13: Will it pass a state emissions inspection?
- No. If your state requires a visual inspection or an OBDII "Readiness" scan, a deleted truck will fail.
Q14: Is it compatible with my existing tuner (EZ Lynk, Mini Maxx, etc.)?
- Yes, our pipes are compatible with all major tuning platforms that support "High-Flow" or "Race" exhaust settings.
