6.6L Duramax LBZ EGR Delete Kit (2006-2007)
Protect your engine and reclaim lost power with our professional-grade EGR Delete Kit for the 2006–2007 6.6L Duramax LBZ. This complete block-off system is designed to permanently eliminate the restrictive factory EGR valve and cooler, preventing abrasive soot from recirculating through your intake manifold and internal engine components.
By removing the EGR system, you ensure your LBZ Duramax breathes only clean, fresh air, leading to a more efficient combustion cycle, lower operating temperatures, and long-term mechanical reliability.
Key Performance Benefits
-
Optimized Fuel Economy: By restoring engine efficiency and reducing backpressure, this kit can help you see an increase in fuel economy by up to 20%.
-
Lower Engine Temperatures: Eliminates the EGR cooler, preventing hot exhaust gases from heating your engine coolant. This results in lower overall coolant and oil temperatures.
-
Stop Carbon Buildup: Prevents "soot-clogging" of the intake valves and manifold, ensuring your engine stays clean internally and maintains peak performance.
-
Enhanced Engine Longevity: Reduces the thermal stress and abrasive wear caused by recycled exhaust particulates, extending the life of your turbo and engine components.
-
Cost-Effective Reliability: Avoid the high costs of replacing failed factory EGR valves and coolers by switching to a permanent, maintenance-free solution.
Technical Specifications
| Attribute |
Detail |
| Engine Compatibility |
6.6L V8 Duramax (LBZ Code) |
| Model Years |
2006-2007 |
| Material |
Heavy-Duty Billet Aluminum & Stainless Steel |
| Kit Type |

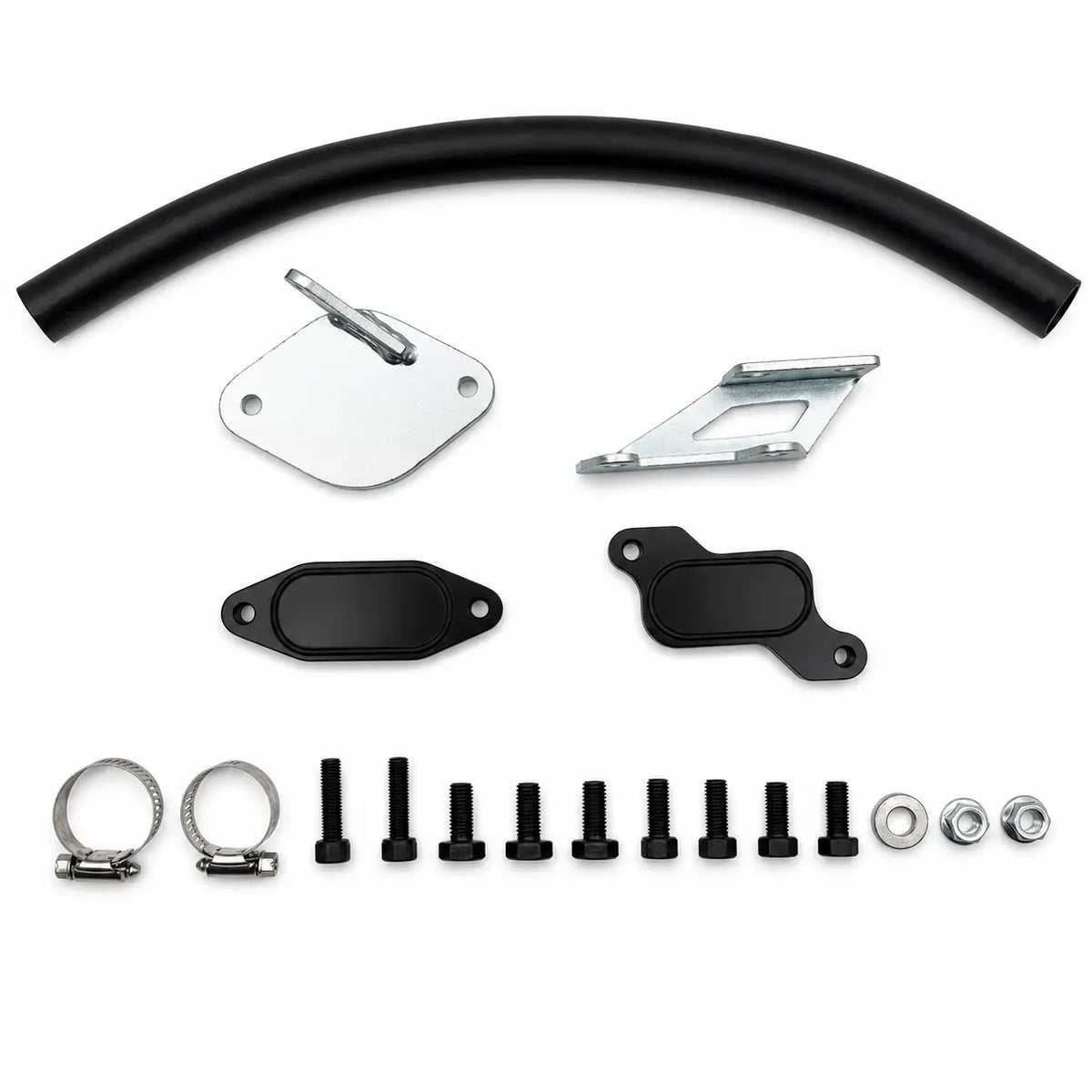

Complete Valve & Cooler Block Off System |
| Hardware |
Precision-Cut Plates & Gaskets Included |
| Usage |
Off-Road & Competition Use Only |
Detailed Vehicle Fitment Guide
This kit is a precision-fit replacement for the following 6.6L LBZ Duramax trucks:
-
2006-2007 Chevrolet Silverado 2500HD / 3500HD
-
2006-2007 GMC Sierra 2500HD / 3500HD
-
Note: This kit is specifically for the 2006-2007 LBZ. It is not compatible with earlier LLY or later LMM models.
Why Upgrade Your LBZ Duramax?
The LBZ Duramax is widely considered one of the best diesel engines ever made, but its factory EGR system is a significant weak point. Over time, soot buildup causes the EGR valve to stick and the cooler to leak, leading to "limp mode" and reduced power. Installing an LBZ EGR Delete is the most effective way to ensure your truck remains dependable for heavy towing or high-performance off-road builds.
Frequently Asked Questions (FAQ)
Q: Will this kit require a performance tuner?
A: Yes. To prevent Check Engine Lights (CEL) and ensure the engine operates correctly without the EGR system, an EGR-delete capable tuner is required.
Q: Is the installation a direct bolt-on?
A: Yes, the plates and gaskets are designed to fit the factory mounting points. However, professional installation is highly recommended due to the technical nature of the EGR cooler removal.
Q: Can I use this on a street-legal truck?
A: No. This product is intended strictly for off-road or competition use only and should be used in compliance with all local laws and regulations.
General Performance & Technical Questions
Q1: What are the primary benefits of an EGR delete on a Duramax?
- Engine Longevity: Stops abrasive soot and carbon from entering your intake manifold and scoring cylinder walls.
- Lower EGTs: Reduces overall engine operating temperatures by eliminating the recirculation of hot exhaust gases.
- Improved MPG: Many owners report up to a 20% increase in fuel economy when paired with a proper off-road tune.
- Turbo Protection: Prevents "carbon choking" of the turbocharger vanes and intake valves, extending the life of your top-end components.
Q2: What tools are required for installation?
- You will need a standard set of metric sockets, wrenches, and screwdrivers. Since the EGR cooler is integrated into the cooling system, you will also need coolant catch pans and fresh Dex-Cool to refill the system after the reroute.
Q3: Will an EGR delete damage my engine?
- No. When installed correctly with supporting tunes, it actually improves reliability. It optimizes airflow, reduces thermal stress on the head gaskets, and prevents the common "clogged EGR" issues that lead to expensive repairs.
Q4: Will removing the EGR cause my truck to smoke?
- With a high-quality "clean" tune (from platforms like EFI Live or EZ Lynk), your truck should not produce excessive black smoke. Without proper tuning, the air-fuel ratio will be unbalanced, leading to poor combustion and heavy smoke.
Q5: Is an EGR delete legal for street use in the U.S.?
- No. These kits are sold strictly for OFF-ROAD / RACING USE ONLY. Under EPA federal law, removing emissions equipment from a vehicle operated on public highways is illegal and will cause the vehicle to fail emissions inspections (Smog Checks).
LLY (2004.5–2005) Specifics
Q6: Does the LLY kit include a high-flow intake pipe?
- Yes. Most LLY kits feature a high-flow intake bridge designed to replace the restrictive factory piece, significantly increasing airflow for your 2005 Duramax.
Q7: Can I install the 2005 LLY kit myself?
- Yes. The LLY is a very DIY-friendly platform. It is a direct bolt-on solution that typically takes 2–3 hours for an experienced enthusiast with basic hand tools.
LMM (2007.5–2010) Specifics
Q8: Which trucks are compatible with the LMM kit?
- This kit is specifically for 2007.5–2010 Silverado and Sierra 2500/3500 HD models equipped with the 6.6L LMM engine.
Q9: How long is the installation for an LMM Duramax?
- Due to the engine bay layout, the LMM is more labor-intensive than the LLY. Expect a 4–6 hour installation time.
LML (2011–2016) Specifics
Q10: What materials are used in the LML delete kit?
- Our LML kits are manufactured from CNC-machined billet aluminum and high-grade stainless steel to ensure they handle the high boost pressures and heat cycles of the 6.7L platform.
Q11: Is this compatible with a 2015 Chevrolet Silverado?
- Yes. It is fully compatible with 2011–2016 LML models, including the 2015 Silverado/Sierra 2500 and 3500 HD.
L5P (2017–2025) Specifics
Q12: What does the L5P EGR delete improve?
- By removing the EGR valve and cooler on the 2017+ L5P, you allow the engine to pull in 100% fresh, oxygen-rich air. This results in more consistent torque and lower coolant temperatures—highly noticeable when towing heavy loads.
Q13: Is the L5P installation complicated?
- While the L5P engine bay is compact, the kit is designed for a precise fit. Most DIYers can complete the installation within a few hours. Note: L5P tuning is specialized; ensure your ECM is unlocked and ready before starting the physical install.
Troubleshooting & Maintenance
Q14: Will this kit fix the issue of intake heater bolts falling into the engine?
- No. This kit deletes the EGR system. The "heater grid bolt" issue is a separate hardware failure. If you are concerned about those bolts, we recommend a "Grid Heater Delete" in addition to this kit.
Q15: Will my truck pass emissions with this kit?
- No. Removing the EGR system is a "fail" for visual and OBDII emissions scans in states that require testing.
